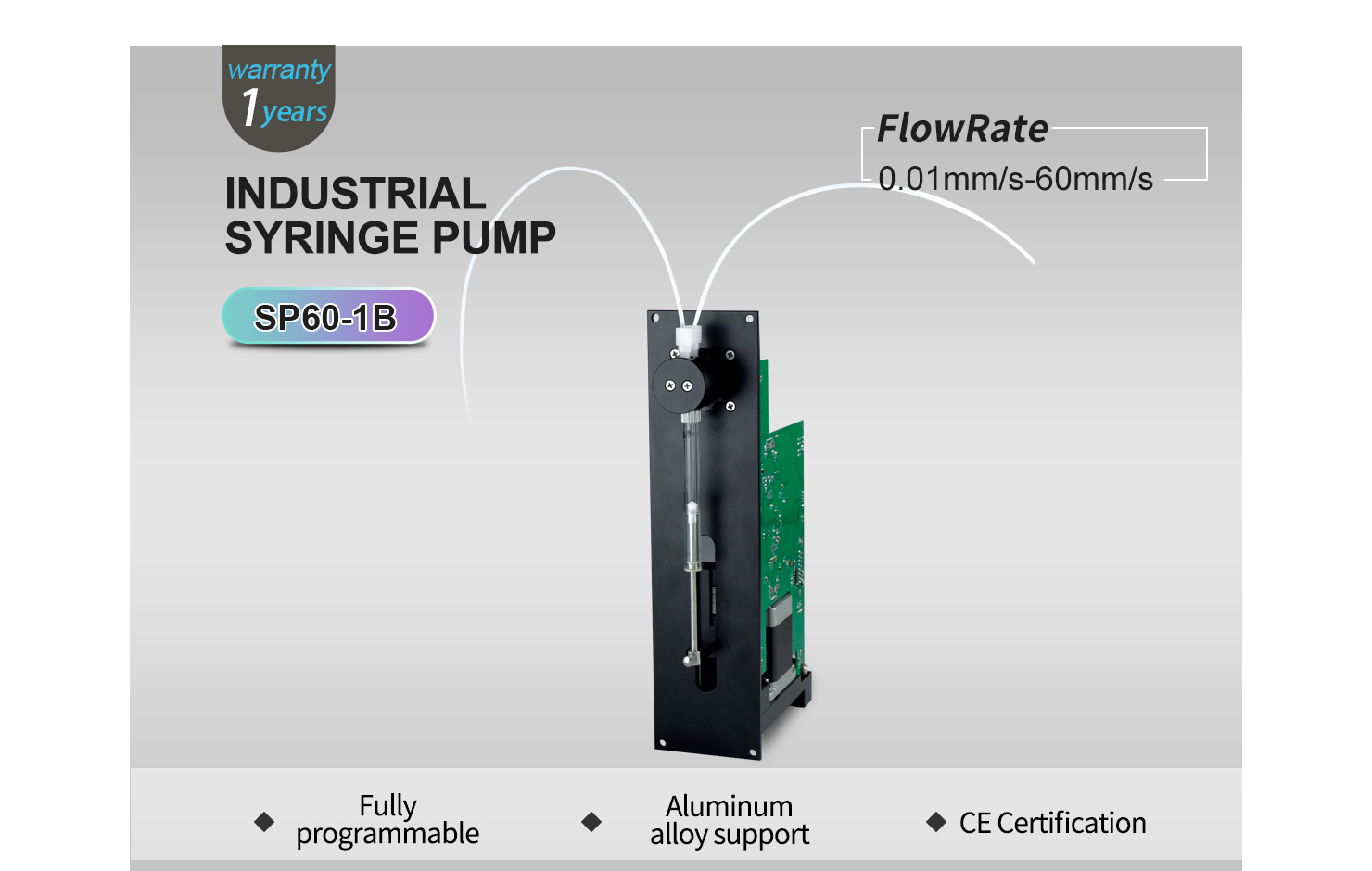

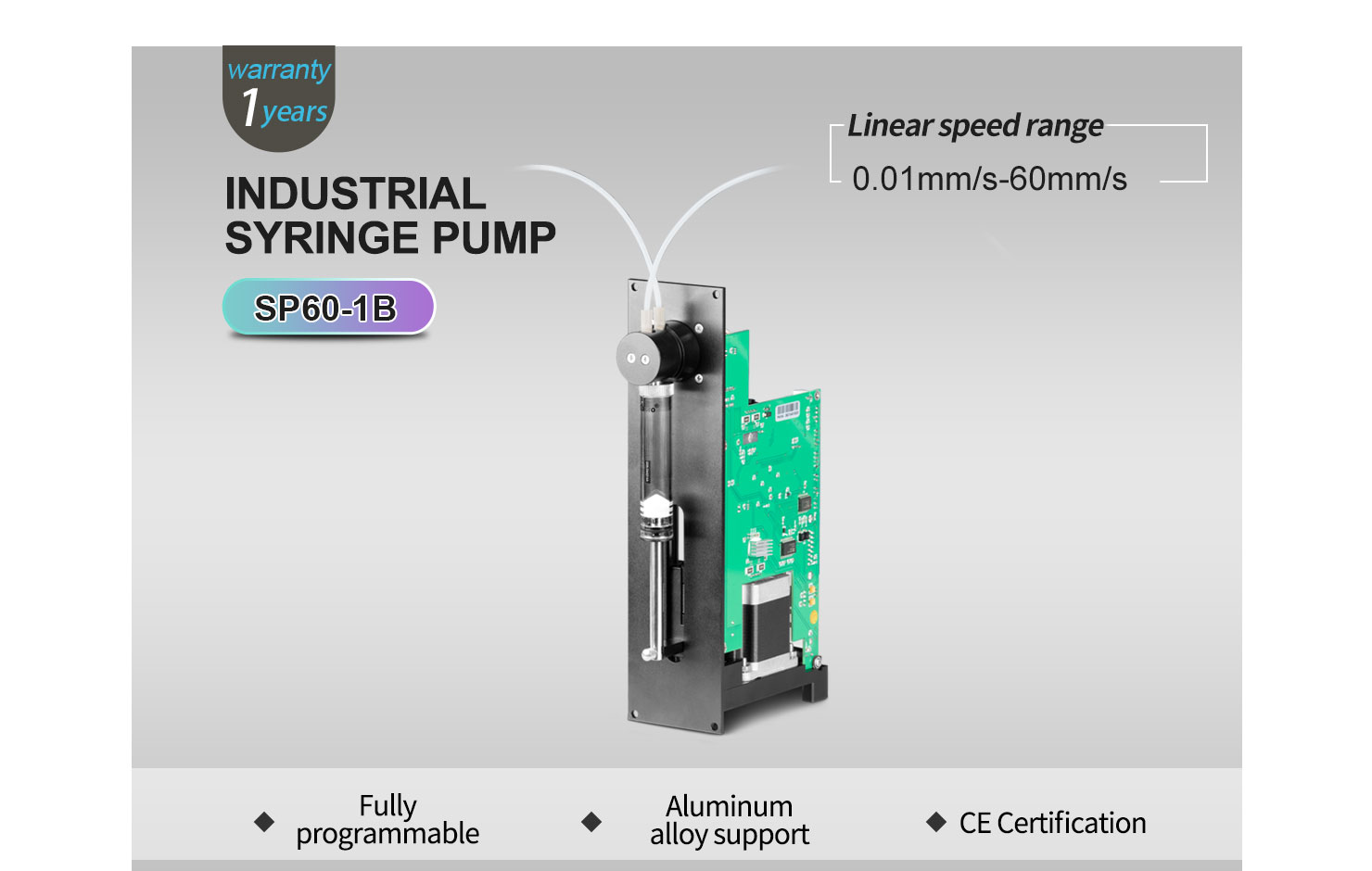

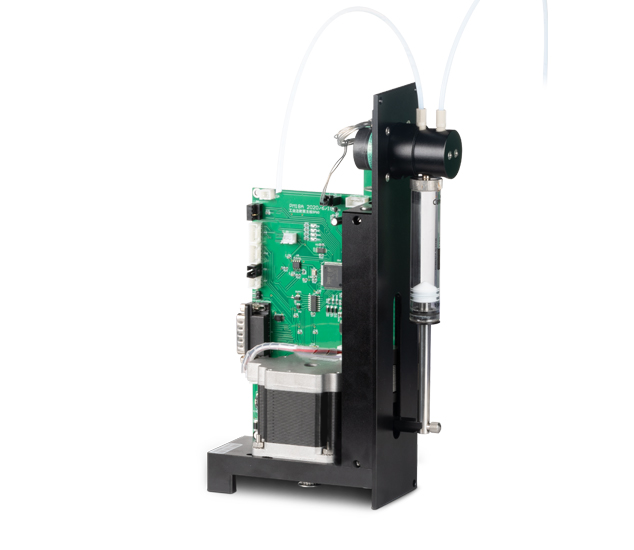

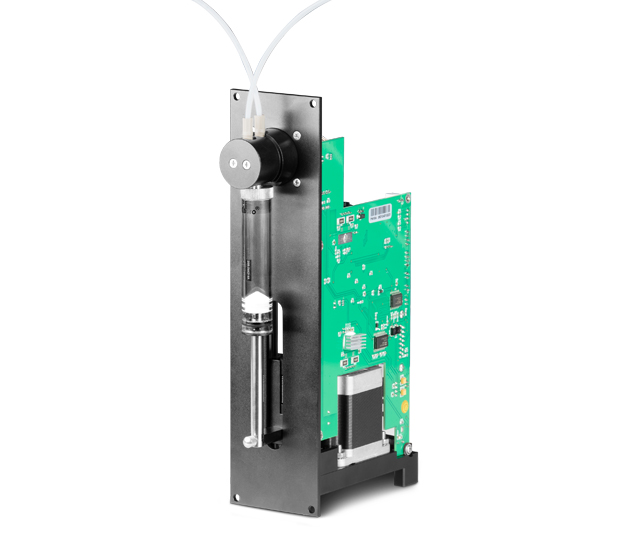

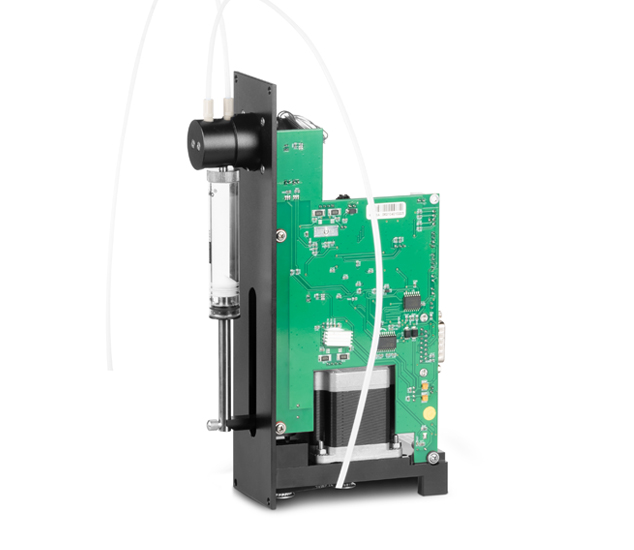

Model No: SP60-1B1 years warranty

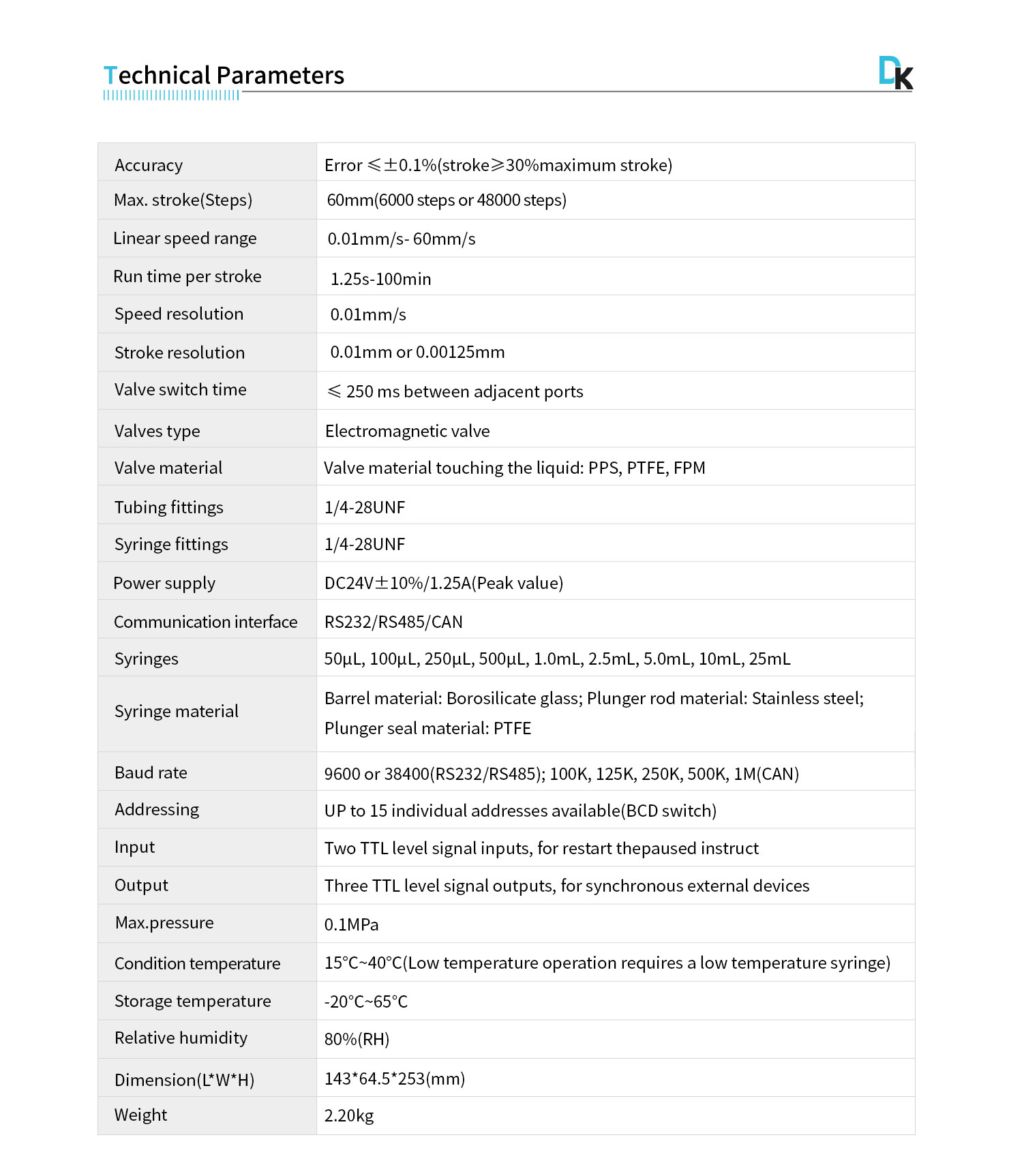

• Linear speed range: 0.01mm/s-60mm/s

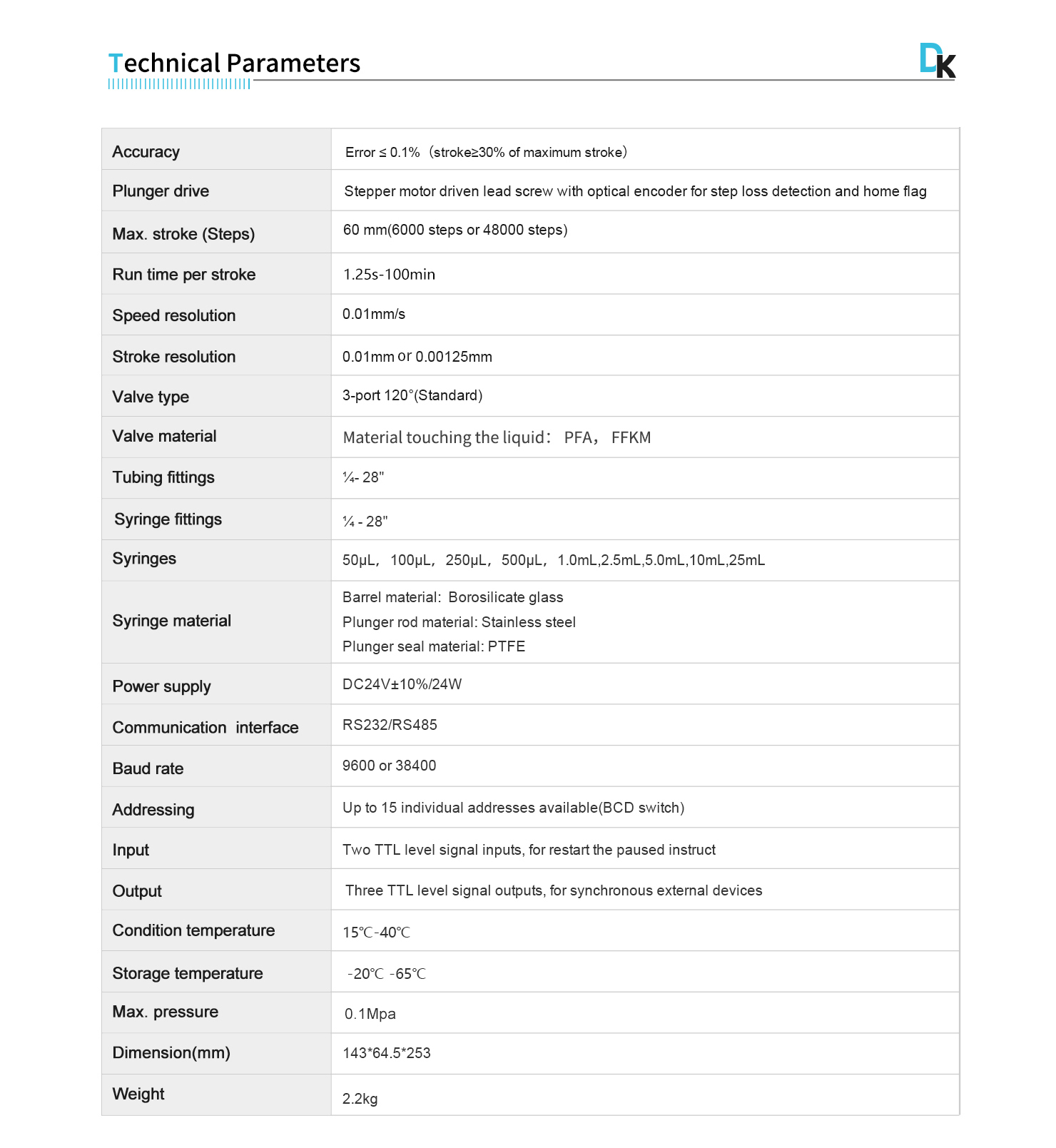

• Plunger drive : Stepper motor driven lead screw with optical encoder for step loss detection and home flag
• Max. stroke (Steps) : 60 mm(6000 steps or 48000 steps)
• Run time per stroke : 1.25s-100min
• Speed resolution : 0.01mm/s
• Stroke resolution : 0.01mm or 0.00125mm
• Valve switch time : ≤ 250 ms between adjacent ports

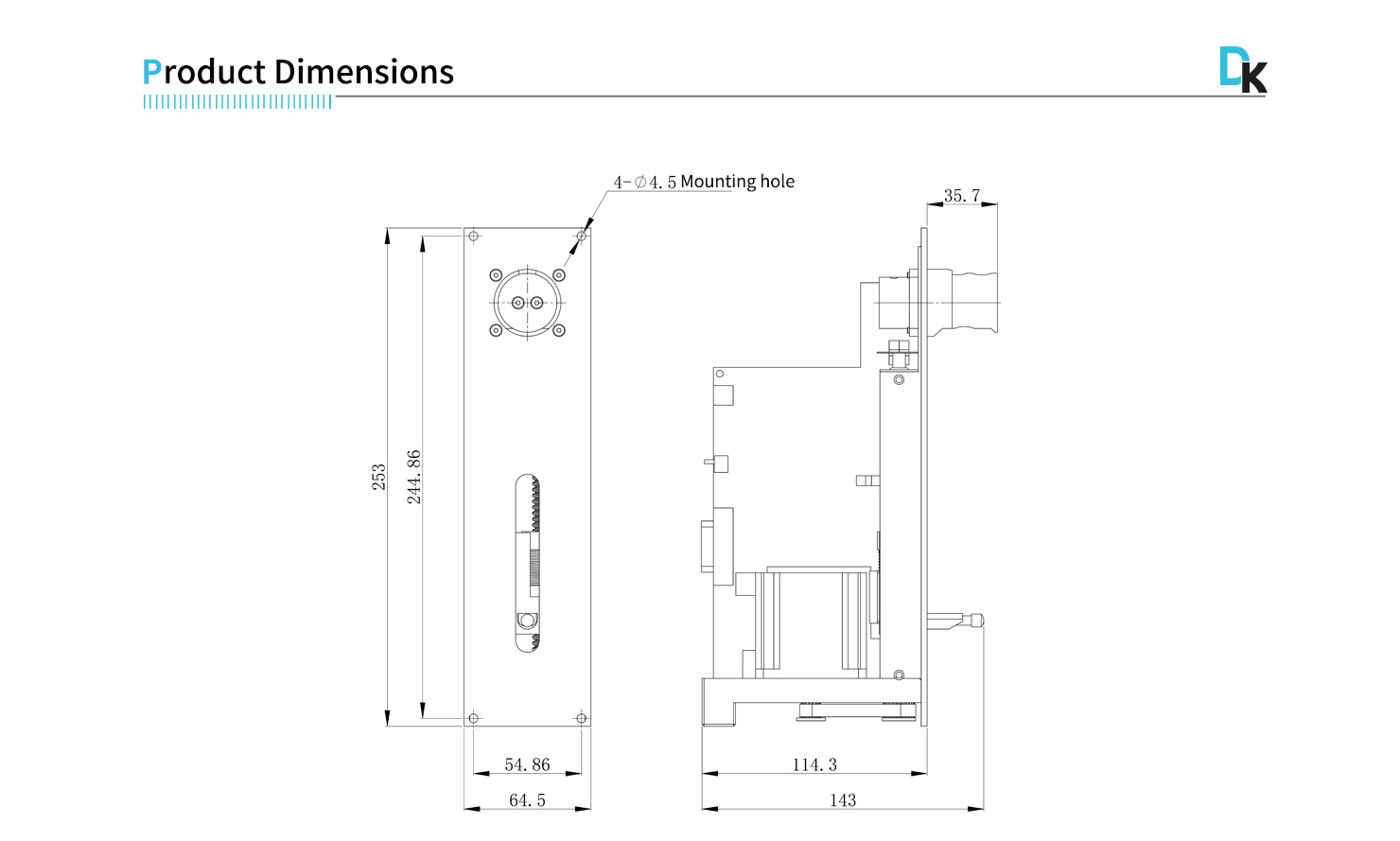

• Dimension(mm) : 143x64.5x253mm (L×W×H)
