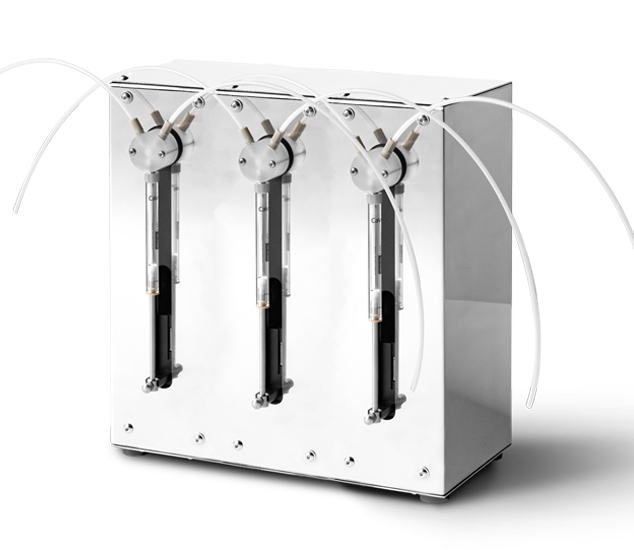

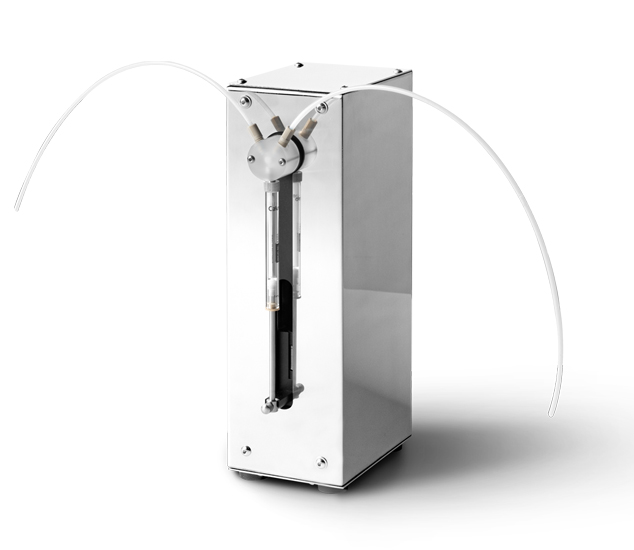

Model No: ASD60-II3 years warranty

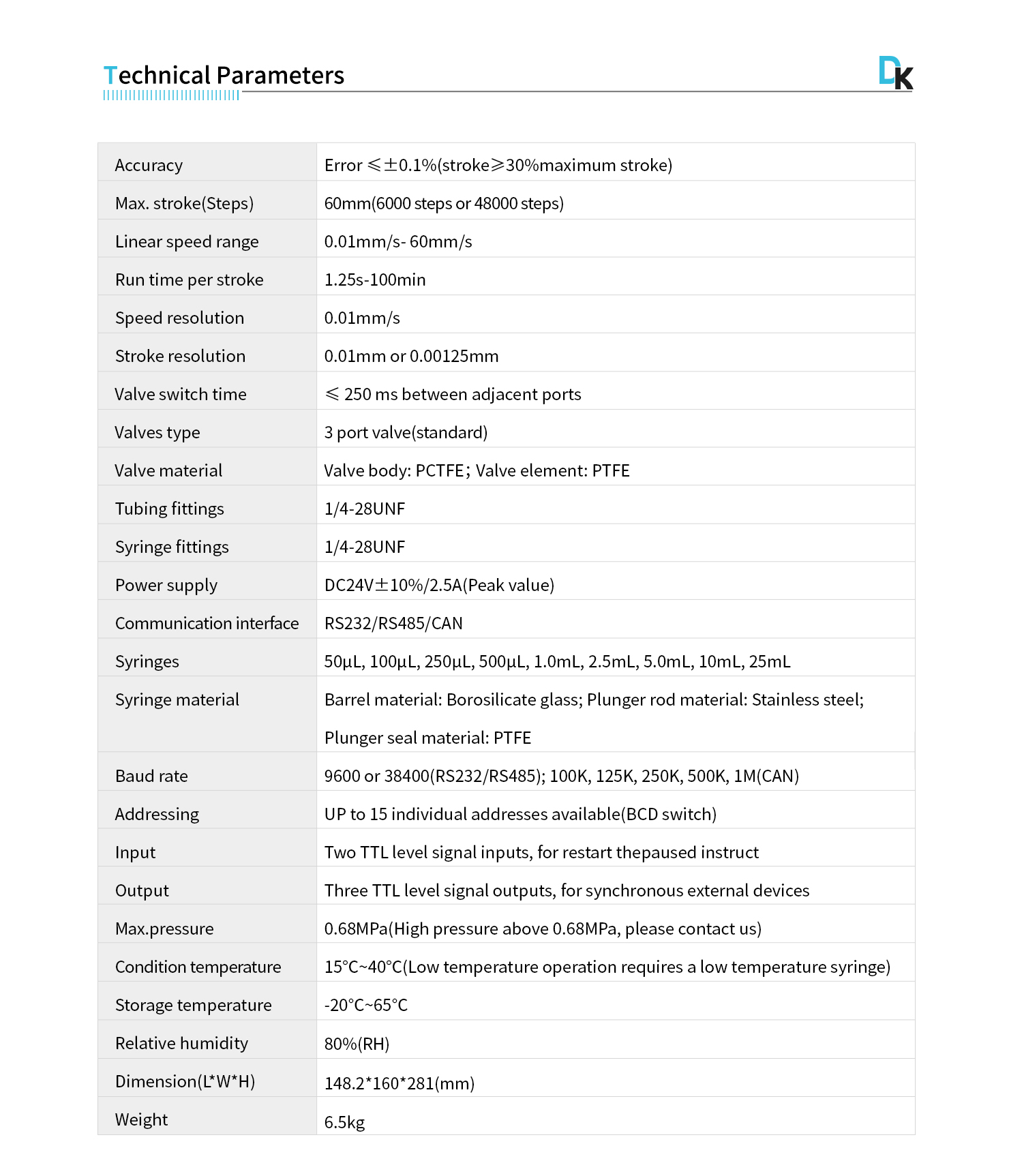

• FlowRate: 0.01mm/s-60mm/s
• Accuracy : Error ≤ 0.1%（stroke≥30% of maximum stroke）
• Plunger drive : Stepper motor driven lead screw with op
• Max. stroke (Steps) : 60 mm(6000 steps or 48000 steps)
• Speed resolution : 0.01mm/s
• Stroke resolution : 0.01mm or 0.00125mm
• Max. pressure : 0.68Mpa

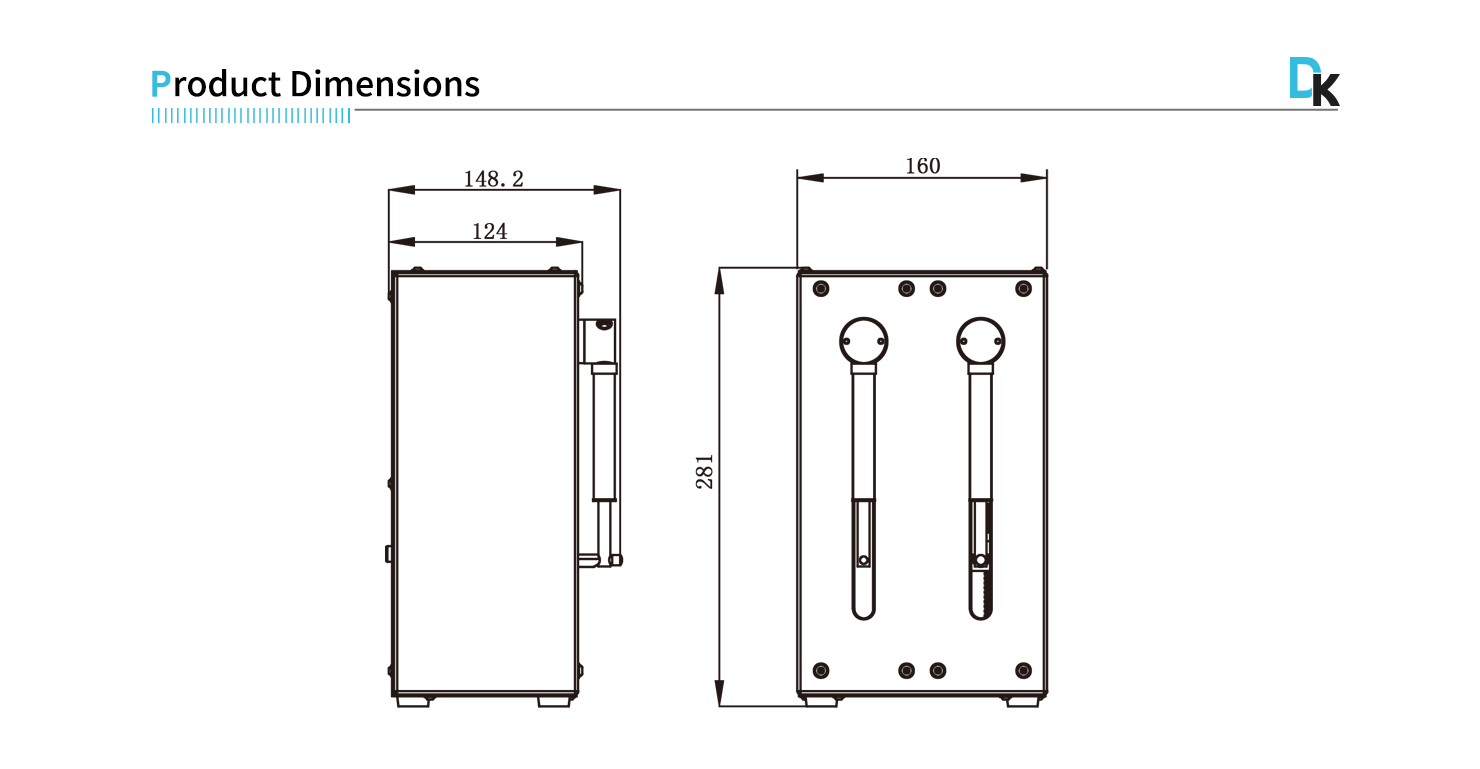

• Dimension(mm) : 147.4x160x278.9mm (L×W×H)
