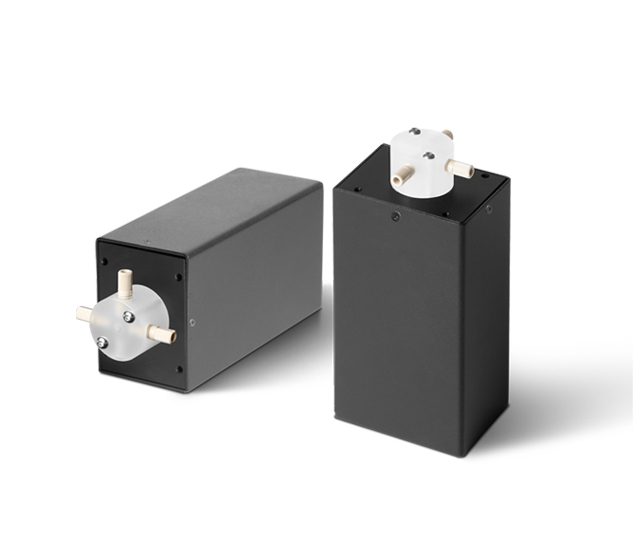

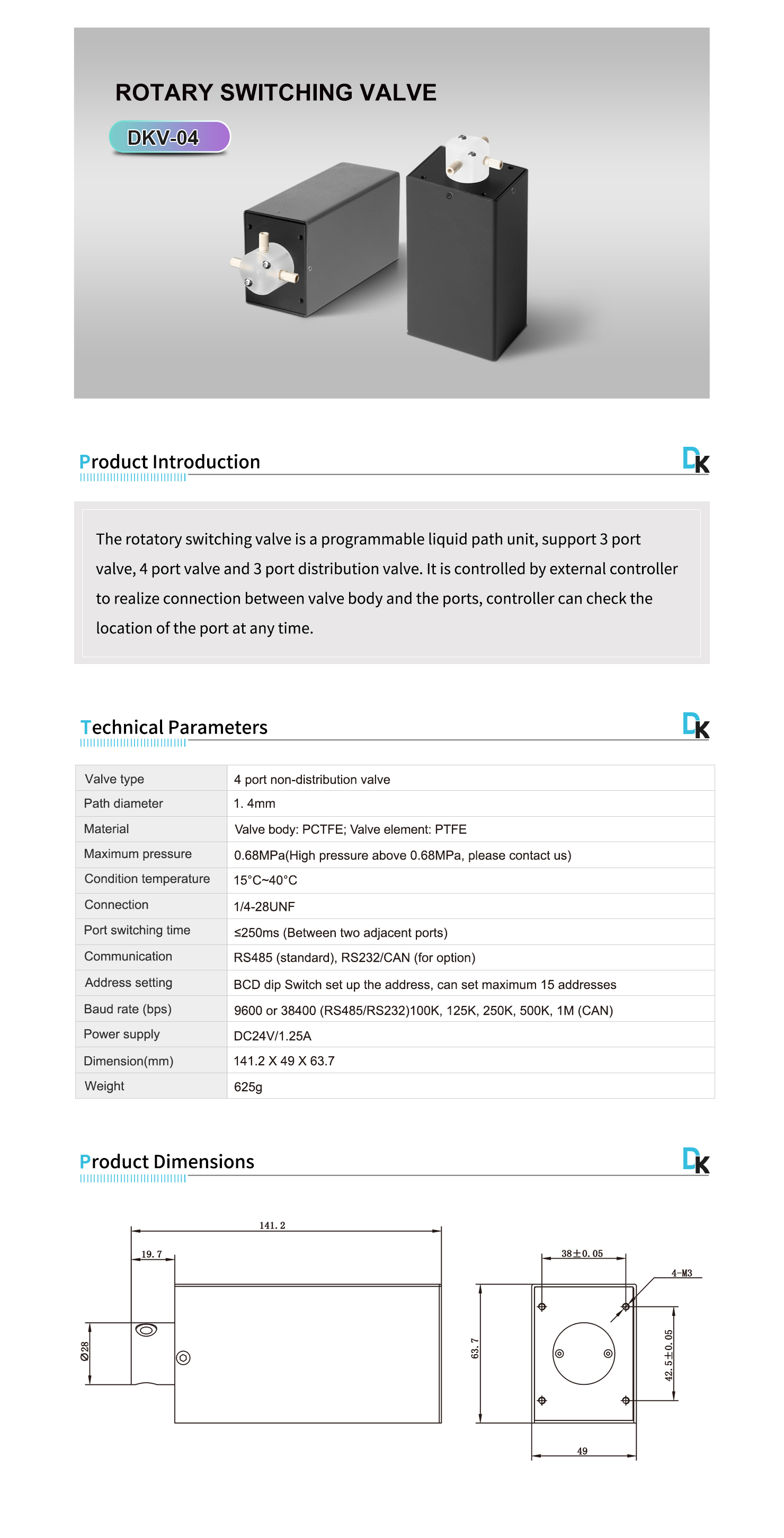

Model No: DKV-04 Accessories

• Valve type：3 port non-distribution valve
• Path diameter：1. 4mm
• Material：Valve body: PCTFE; Valve element: PTFE
• Maximum pressure：0.68MPa(High pressure above 0.68MPa, please contact us)
• Condition temperature：15°C~40°C
• Connection：1/4-28UNF
• Port switching time：≤250ms (Between two adjacent ports)
• Communication：RS485 (standard), RS232/CAN (for option)
