Product Introduction
7 inch touch screen control, display 8 pump units working parameters and working state. Friendly interface, easy operation. Split type design, mainly for laboratory.
- Two working modes: Independent working mode, each unit working independently, can infuse or withdraw with different speed in same time or different time. Logic working mode, each unit working with time relationship, with different proportion infuse or withdraw. Users can choose each unit to be independent or logic working mode.
- Intelligent calibration, ensure infuse volume accuracy. Online micro adjusting function, convenient to adjust the volume of one unit, decrease volume error.
- Real-time monitor, animate display monitor result. Controller can receive flow alarm of each unit.
- Back distance setting, can exclude bubbles inside syringe, improve volume accuracy.
- Fast forward and backward function used for loading syringe, washing and unlock flow protection.
Technical Parameter
| Working mode | Infusion, withdrawal, infusion/withdrawal, withdrawal/infusion. |
| Pump unit | 1-8 optional |
| Syringe size | ZU-I: 0.5μL-60mL; ZU-I-G1: 250μL-25mL; ZU-I-G2: 50mL |
| Syringe selection | Syringe size and customized diameter |
| Linear speed range | 1μm/min-132mm/min (Flow rate=Linear speed* syringe inner cut area) |
| Min. linear rate | 1μm/min |
| Linear force | ≥16kgf |
| Max. stroke | 90mm |
| Stroke resolution | 0.078μm/μstep |
| Accuracy | Stroke≥30% of maximum stroke, Error≤±0.5% |
| Back distance | 0.01-5mm |
| Working mode | Independent running mode and Logic running mode |
| Stored modes | 5 group data of each running mode |
| Display | Industrial grade 7" LCD color display |
| Control method | Touch screen |
| Power-off memory | Display the previous data parameter after power supply again |
| External control signal | Start/stop signal, active switch signal (5-24V universal) All start/stop signal, passive switch signal, such as foot pedal switch |
| Communication interface | RS232/RS485, Modbus protocol(RTU mode) |
| Controller power supply | DC5V/10W |
| Pump unit power supply | DC24V/30W |
| Condition temperature | 0-40℃ |
| Relative humidity | <80% |
| IP rate | IP31 |
| Controller dimension | 240×221×111 (mm) |
| Controller weight | 2.0kg |
| Pump unit dimension | 257×110×131 (mm) |
| Pump unit weight | 3.0kg |
Applicable Syringes
|
Syringe
|
Inside Diameterr(mm)
|
Flow Rate(μL/min-mL/min)
|
|
1mL
|
4.70
|
0.0174-2.29
|
|
2mL
|
9.70
|
0.0739-9.755
|
|
5mL
|
12.48
|
0.1223-16.147
|
|
10mL
|
15.89
|
0.1983-26.177
|
|
20mL
|
20.00
|
0.3142-41.469
|
|
30mL
|
22.50
|
0.3976-52.484
|
|
50mL
|
28.90
|
0.6560-86.588
|

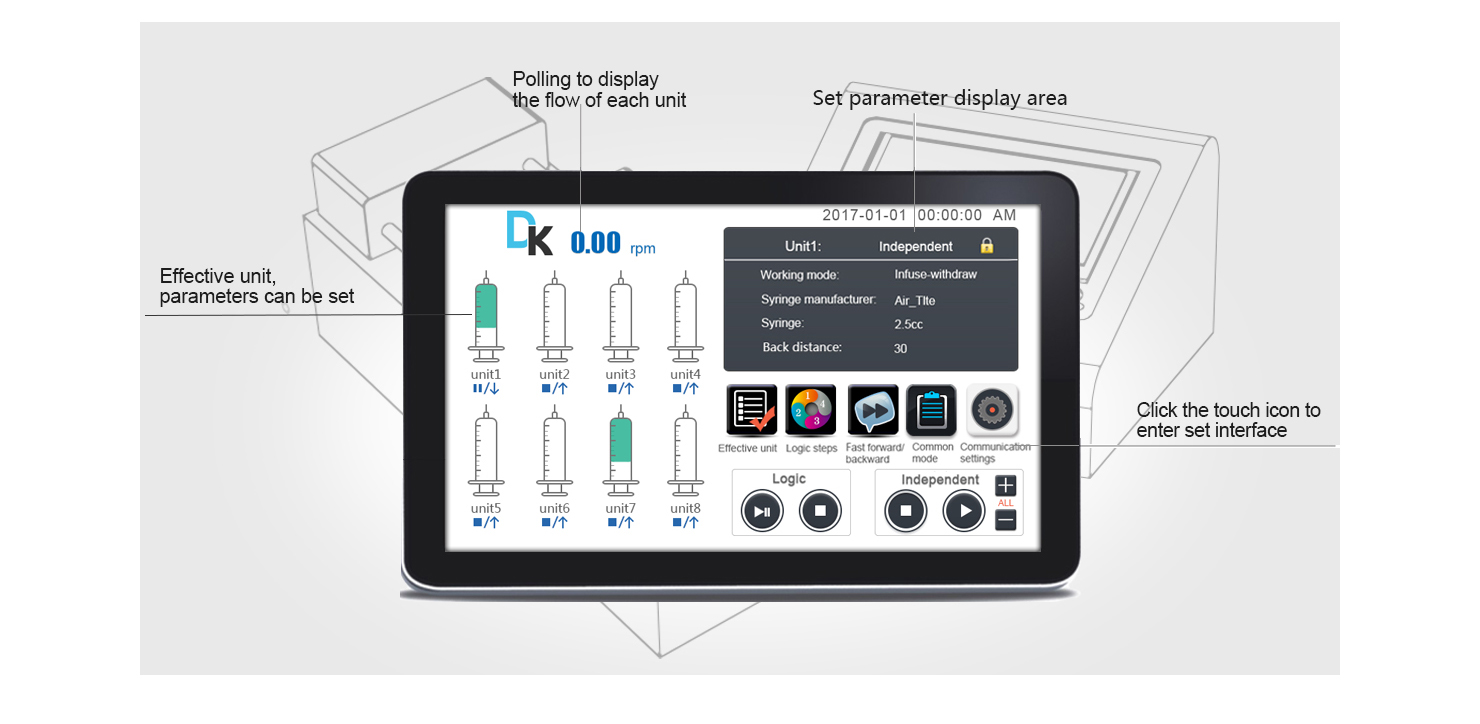

OSD

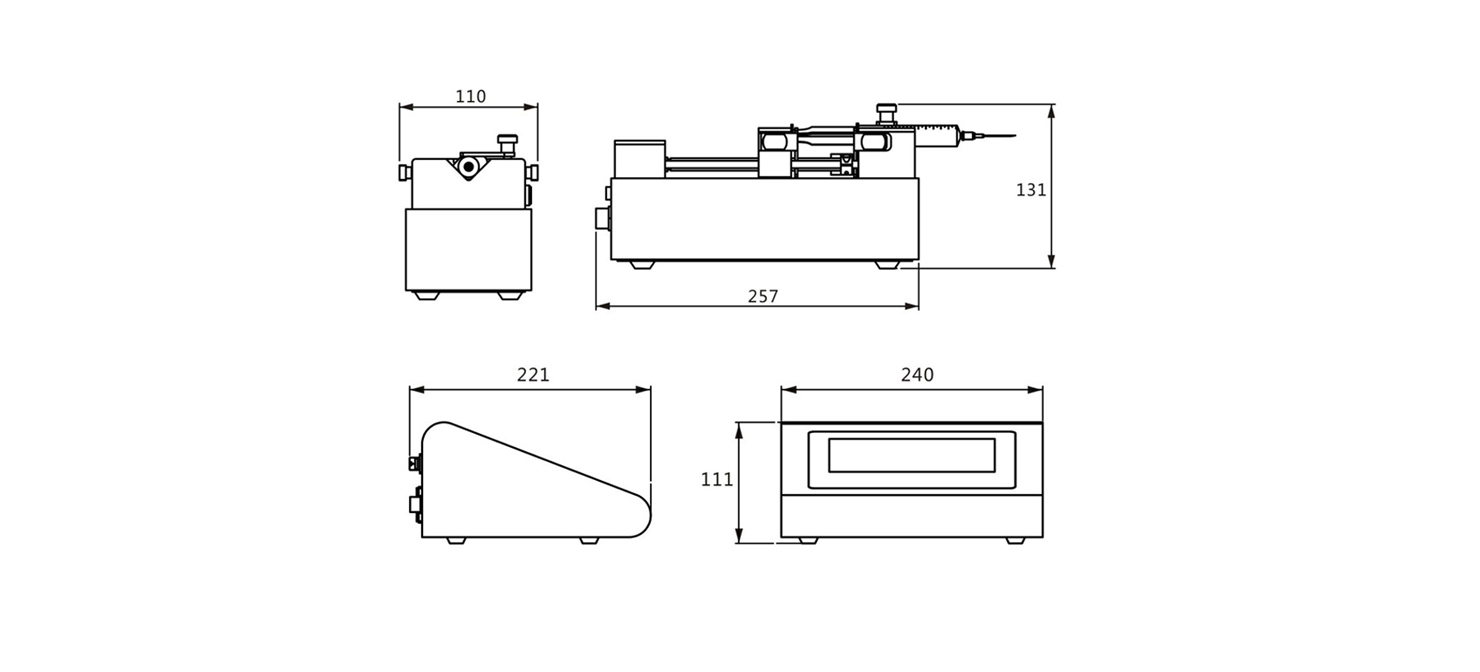

Dimension（Unit：mm）
