SPM/ZU-I
Flow Rates：0.008nL/min-88.351mL/min
Online consultation
Download

Product Introduction

4.3 inch touch screen control, compact design. Display 8 pump units working parameters and working state in same screen. Friendly interface, easy operation. Split design, mainly for laboratory.

  • Each unit working independently, can set one or some units freely. Each unit can infuse or withdraw different volume in same time or different time.
  • Intelligent calibration, ensure infuse volume accuracy. Online micro adjusting function, convenient to adjust the volume of one units, decrease volume error.
  • Real time monitor, animate display monitor result. Controller can receive traffic alarm of each unit.
  • Back distance setting, can exclude bubbles inside syringe, improve volume accuracy.
  • Fast forward and backward function used for loading syringe, washing and unlock traffic protection.

Technical Parameter

Working mode (Five) Infusion, withdrawal, infusion/withdrawal, withdrawal/infusion.
Pump unit 1-8 optional
Syringe size 1mL-50mL plastic syringe 0.5μL-50mL glass syringe
Syringe selection Syringe size and customized diameter
Linear speed range 1μm/min-132mm/min (Flow rate=Linear speed* syringe inner cut area)
Min. linear rate 1μm/min
Linear force ≥16kgf
Max. stroke 90mm
Stroke resolution 0.078μm/μstep
Accuracy Stroke≥30% maximum stroke, Error≤±0.5%
Back distance 0.01-5mm
Working mode Independent working mode
Stored modes Can save 10 group working modes
Display Industrial grade 4.3"LCD color display
Control method Touch screen and Mechanical keypad
Power-off memory Display the previous data parameter after power on again
External control signal Start/stop signal, active switch signal: (5-24V)
Communication interface RS232/RS485, Modbus protocol(RTU mode)
Controller power supply DC5V/10W
Pump unit power supply DC24V/30W
Condition temperature 0-40℃
Relative humidity <80%
IP rate IP31
Controller dimension 160×150×95(mm)
Controller weight 1.0kg
Pump unit dimension 249×128.9×118 (mm)
Pump unit weight 2.8kg

Applicable Syringes

Plastic Syringe
Inside Diameter(mm)
Flow Rate(μL/min-mL/min)
1mL
4.70
0.0173-2.2889
2mL
8.95
0.0628-8.3002
5mL
12.36
0.1199-15.8299
10mL
14.90
0.1742-23.0046
20mL
19.20
0.2893-38.1984
30mL
22.00
0.3799-50.1520
50mL
29.20
0.6693-88.3505


Glass Syringe
 Inside Diameter(mm) Flow Rate(μL/min-mL/min)
250μL 2.30 0.0042-0.5484
500μL 3.25 0.0083-1.095
1mL 4.60 0.0167-2.2033
2.5mL 7.28 0.0416-5.4944
5mL 10.30 0.0833-10.9986
10mL 14.57 0.1667-22.0081
25mL 23.00 0.4166-54.9859
50mL 32.57 0.8321-109.976


Micro Syringe
 Inside Diameter(mm) Flow Rate(nL/min-μL/min)
0.5μL 0.10 0.008-1.0296
1μL 0.15 0.018-2.3232
2μL 0.20 0.031-4.1448
5μL 0.35 0.096-12.6984
10μL 0.50 0.2-25.8
25μL 0.80 0.5-66.4
50μL 1.10 1-125.4
100μL 1.60 2-265.4

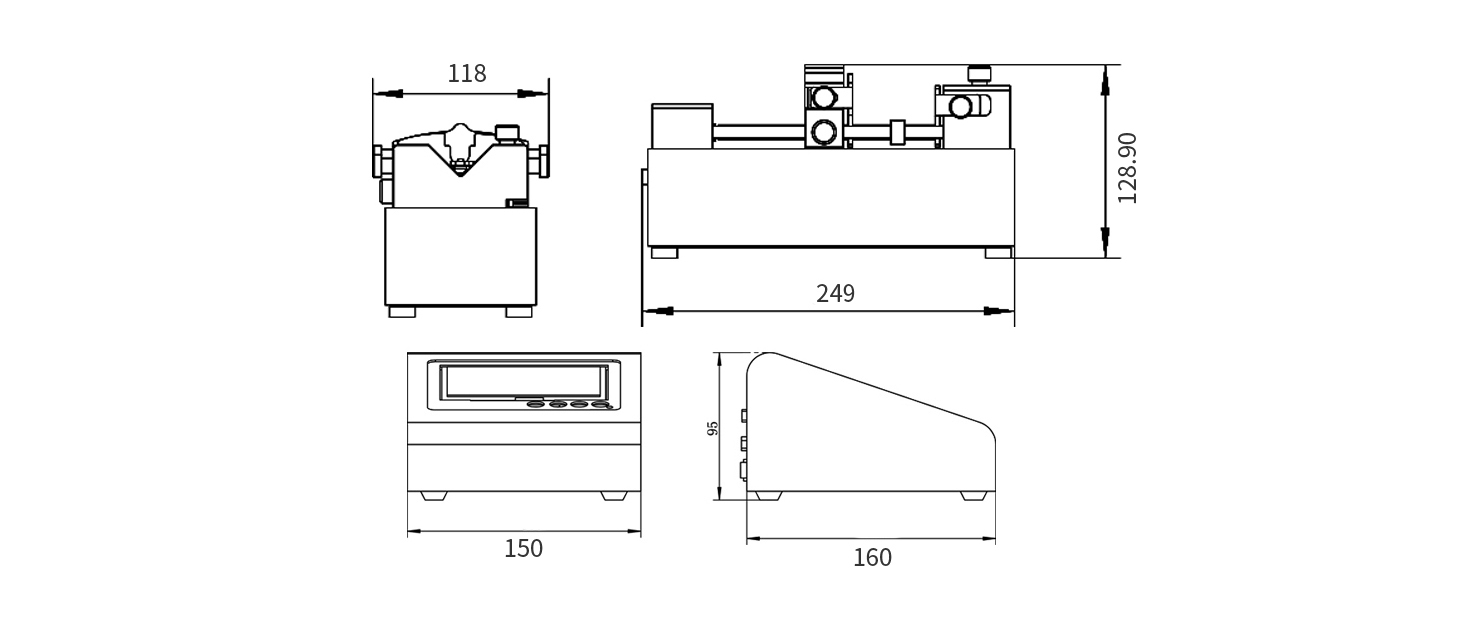

Dimension（Unit：mm）
