SPL
Flow Rates：0.6096μm/min-200mm/min
Online consultation
Download

Product Introduction

  • Compact structure and light weight makes it ideal for  hand-held or stereotaxic injection.
  • Stable flow rate, suitable for high precision transferring of micro volume.
  • Adjustable linear force.
  • 4 working modes: Infusion, withdrawal, infusion-withdrawal, withdrawal-infusion. The parameters of different working modes are saved independently without affecting each other.
  • Built-in multiple syringe models, also can set customized syringe inner diameter.
  • 4.3”full color LCD screen display, touch screen control. Friendly operating interface, the LCD screen displays technical datas in real time.
  • Two metering methods are available for selection: Infusion volume-infusion flow rate; infusion volume-infusion time. The infusion volume displayed in real time, also support calibration function.

Product Introduction

Working Mode Infusion, Withdrawal, Infusion-Withdrawal, Withdrawal-Infusion, Continuous
Syringe Size N70S(0.5uL-100uL) N70(5uL-1000uL)
Syringe Selection Built in syringe model and customizable syringe inner diameter
Linear Speed Range 0.6096um/min-152.4m/min 0.8um/min-200mm/min
Linear Speed Resolution 0.6096μm/min 0.8μm/min
Linear Force  ≤13N（Adjustable） ≤40N（Adjustable）
Stroke Resolution 0.19μm/μstep 0.25μm/μstep
Max. Stroke 70mm
Accuracy Error≤±0.3%(Stroke≥30% of Max. stroke)
Back Distance 0.01-10mm
Common Mode Up to 60 commonly used modes can be saved
Display 4.3” full colour LCD screen
Control Touch screen and keypads
External Control Signal Start/stop signal, active switch signal: 5-24V.
Start/stop signal, passive switch signal, such as foot pedal.
Communication Interface RS232/RS485(Modbus protocol, RTU mode)
Power Supply  DC24V/1.25A
Condition Temperature 0-40℃
Relative Humidity <80%
IP Rate IP31
Dimension 150*166*96mm（Controller）, 185*65*64.8mm（N70 Pump unit）, 185*60.8*51.6mm（N70s Pump Unit）
Weight 1.062kg（Controller）, 0.469kg（N70 Pump unit）, 0.355kg（N70s Pump unit）

Applicable Syringes

N70S Flow Rate Chart
GAOGE
 Inner Diameter(mm) Flow Rate (nL/min-μL/min)
0.5 0.1 0.005 - 1.1975
1 0.15 0.011- 2.6925
2 0.2 0.019- 4.7875
5 0.35 0.059- 14.6625
10 0.5 0.119- 29.9225
25 0.8 0.306- 76.605
50 1.1 0.579- 144.83
100 1.6 1.225- 306.4175


N70 Flow Rate Chart
GAOGE
 Inner Diameter(mm) Flow Rate (nL/min-μL/min)
5 0.35 0.077- 19.2425
10 0.5 0.157- 39.270
25 0.8 0.402- 100.530
50 1.1 0.76- 190.067
100 1.6 1.608- 402.125
250 2.31 3.353- 838.192
500 3.25 6.636- 1659.15
1000 4.61 13.353- 3338.27

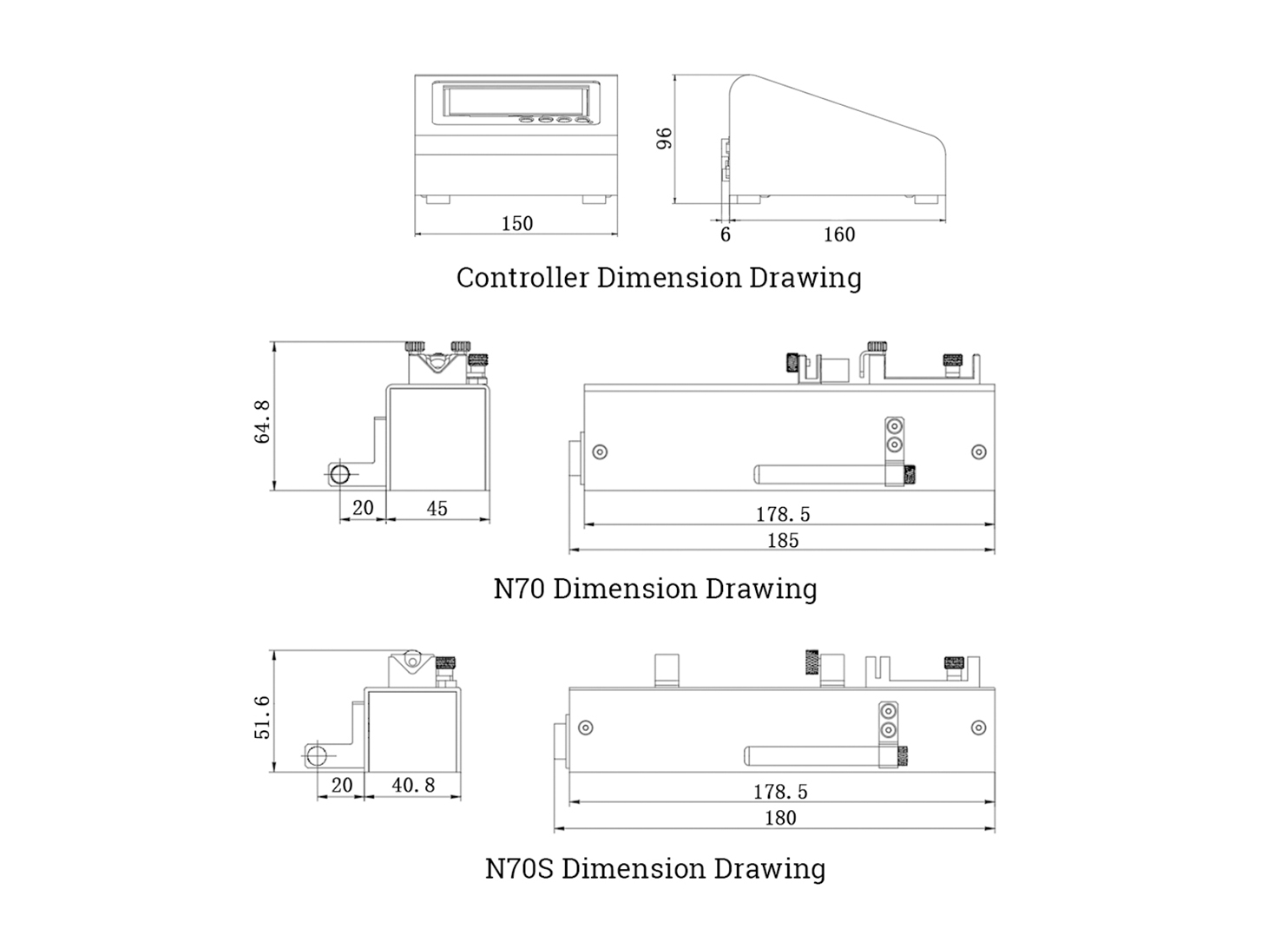

Dimension（Unit：mm）
