Product Introduction
ISPLab01-Pro syringe pump with infusion/withdrawal mode, durable and available for various environments with stainless steel housing. Easy and intuitive operation with 4.3" full color touch screen. Multiple external controls like RS232/485 (Modbus) supported. Capable of handling more types of liquids with stronger linear force. All materials and sizes of syringes supported, especially applicable for transferring micro liquids. (Non-medical use)
- Most Advanced Syringe Loading System:
-Special structure design to minimizing the impact on the properties of solution inside the syringe.
-Loading and replacement of syringe are super fast and convenient, can be operated with one hand.
-Unique adaptive structure, fitting various syringe barrel shapes, syringe protectable and accuracy guaranteed.
-Featured syringe plunger mounting design, secured syringe installation and stable operation.
-All materials, models, and sizes of syringe from 0.5μL-150mL adapted.
- Real Time Flow Rate Modification: Flow rate adjustable at any time without stopping, meeting the requirements of complex applications.
- 4.3-inch full color LCD touch screen, intuitive interface, real-time display of various technical data.
- Built-in Syringe Model List: Syringe model selectable or syringe inner diameter directly inputted.
- Three metering methods to choose from: liquid volume-flow rate, liquid volume-time, and flow rate-time. The volume can be displayed in real time and can be calibrated.
- Up to 45kgf linear force, more kinds of liquids handleable and a wider range of applications available.
- Blockage Protection: During operation, if propulsion mechanism blocked, pump will stop operating and sound alarm signal.
- Power Off Memory: The pump remains running or stop according to the setting parameters when power returns after an interruption.
Technical Parameter
| Working Mode | Infusion, Withdrawal, Infusion-Withdrawal, Withdrawal-Infusion, Continuous |
| Channel Number | Single |
| Applicable Syringe | 0.5μL-150mL of all materials |
| Syringe Selection | Built in syringe model and customizable syringe inner diameter |
| Linear Speed Range | 1μm/min-132mm/min(Flow rate=linear speed * internal cross-sectional area of syringe) |
| Linear Speed Resolution | 1μm/min |
| Linear Force | 12-45kgf |
| Max. Stroke | 140mm |
| Stroke Resolution | 0.078μm/μstep |
| Accuracy | Error≤±0.3%(Stroke≥30% of Max. stroke) |
| Reverse Distance | 0.01-10mm |
| Common Modes | Up to 60 commonly used modes can be saved |
| Display | 4.3" full color LCD screen |
| Control | Touch screen and keypads |
| Power Off Memory | The pump remains running or stops according to the setting parameters when power returns after an interruption. |
| Output | OC gate signal output, indicating operating status and direction |
| External Control | Start/stop signal, fast extraction and infusion signal, active switch signal 5V-24V Start/stop signal, passive switch signal, e.g. foot pedal switch |
| Communication Interface | RS232/RS485 (Modbus, RTU) |
| Power Supply | AC 90-264V/65W(50-60Hz) |
| Condition Temperature | 0-40℃ |
| Relative Humidity | <80% |
| IP Rate | IP31 |
| Dimension | 282x223x160(mm) |
| Weight | 4.85kg |
Applicable Syringes
|
Plastic Syringe
|
Internal Diameter(mm)
|
Reference Flow Rate(μL/min-mL/min)
|
|
1mL
|
4.70
|
0.0173-2.2889
|
|
2mL
|
8.95
|
0.0628-8.3002
|
|
5mL
|
12.36
|
0.1199-15.8299
|
|
10mL
|
14.90
|
0.1742-23.0046
|
|
20mL
|
19.20
|
0.2893-38.1984
|
|
30mL
|
22.00
|
0.3799-50.1520
|
|
50mL
|
29.20
|
0.6693-88.3505
|
|
60mL
|
29.20
|
0.6693-88.3505
|
|
100mL
|
32.00
|
0.8042-106.1544
|
|
150mL
|
40.00
|
1.2566-165.8712
|
| Glass Syringe | Internal Diameter(mm) | Reference Flow Rate(μL/min-mL/min) |
| 250μL | 2.30 | 0.0042-0.5484 |
| 500μL | 3.25 | 0.0083-1.095 |
| 1mL | 4.60 | 0.0167-2.2033 |
| 2.5mL | 7.28 | 0.0416-5.4944 |
| 5mL | 10.30 | 0.0833-10.9986 |
| 10mL | 14.57 | 0.1667-22.0081 |
| 25mL | 23.00 | 0.4166-54.9859 |
| 50mL | 32.57 | 0.8321-109.976 |
| 100ml | 32.57 | 0.8321-109.976 |
| Micro Syringe | Internal Diameter(mm) | Reference Flow Rate(nL/min-μL/min) |
| 0.5μL | 0.10 | 0.008-1.0296 |
| 1μL | 0.15 | 0.018-2.3232 |
| 2μL | 0.20 | 0.031-4.1448 |
| 5μL | 0.35 | 0.096-12.6984 |
| 10μL | 0.50 | 0.2-25.8 |
| 25μL | 0.80 | 0.5-66.4 |
| 50μL | 1.10 | 1-125.4 |
| 100μL | 1.60 | 2-265.4 |

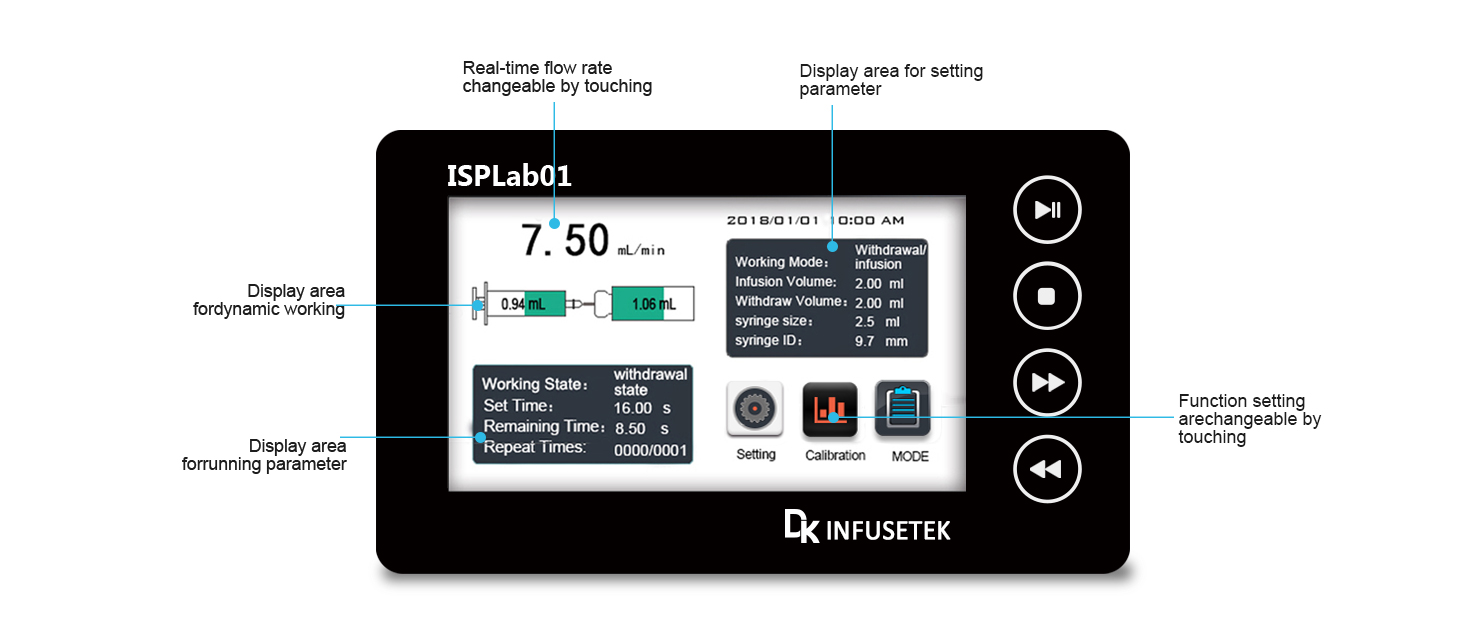

OSD

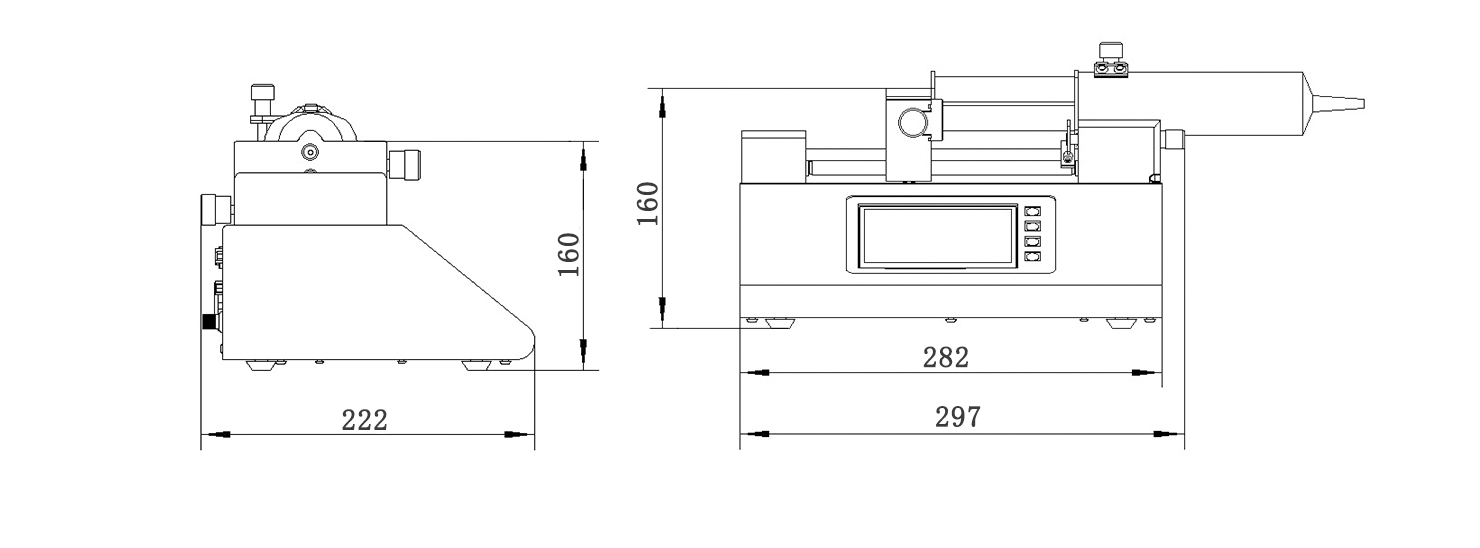

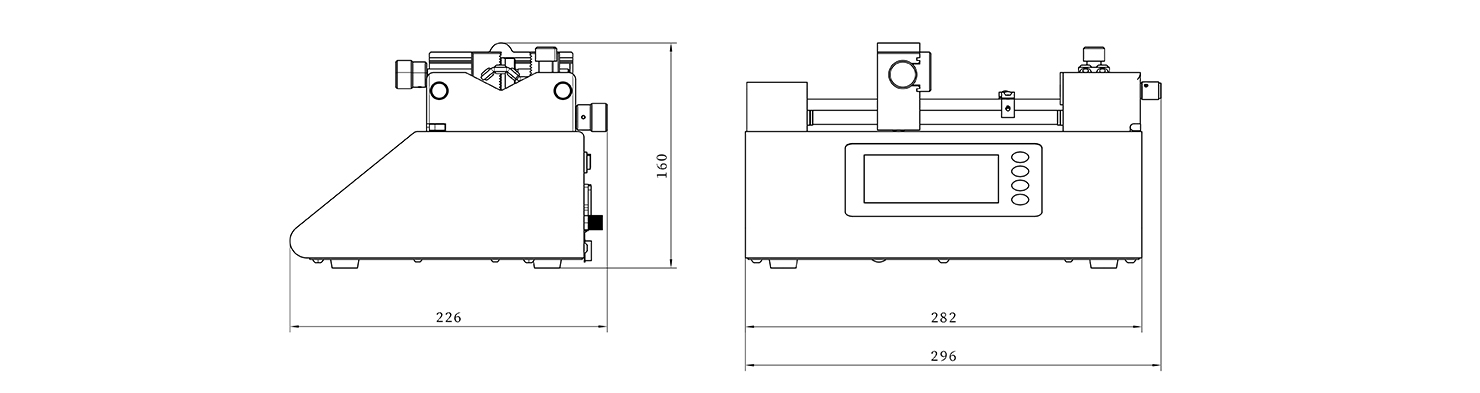

Dimension（Unit：mm）
