Product Introduction
The intelligent syringe pump with infusion/withdrawal mode, stainless steel body, and 4.3" color LCD screen is easy to operate. It can install and fix different types of injectors or syringes, and it is suitable for transferring micro flow rates with high precision (non-medical).
- Online flow rate modification function: the pump is running, without stopping, adjust the flow rate at any time to meet complex application.
- Colorful LCD display: Friendly interface, large-screen LCD display every technical parameter in real time.
- Input injector inner diameter function: Can choose the injector from the list or input the injector inner diameter directly.
- Two measurement modes for selection: Infusion volume --- Infusion rate, Infusion volume --- Infusion time.
- 4 different working modes: Infusion, withdrawal, infusion/withdrawal, withdrawal/infusion, continuous and additional mode ( infusion/withdrawal, then exclude bubble). The parameters of each working mode saving separately.
- Protection function: The pump will stall and give an alarm when the drive structure of the pump is blocked.
Technical Parameter
| Working mode | Infusion，withdrawal，infusion/withdrawal，withdrawal/infusion |
| Channel number | 1 |
| Syringe size | 0.5μL-150mL |
| Syringe selection | Syringe size and customized diameter |
| Linear speed range | 1μm/min-132mm/min (Flow rate=Linear speed * syringe inner cut area) |
| Min. linear rate | 1μm/min |
| Linear force | ≤25kgf |
| Max. stroke | 140mm |
| Stroke resolution | 0.078μm/μstep |
| Accuracy | Error ≤±0.3% (Stroke ≥30% of maximum stroke) |
| Back distance | 0.01-10mm |
| Stored modes | Can save at most 60 modes |
| Display | Industrial grade 4.3" LCD color display |
| Control method | Touch screen and Mechanical keypad |
| Power-off memory | Display the previous data parameter after power supply again |
| Output | OC gate signal output, used to indicate running status and direction |
| External control | Start/stop signal, without drawal and infusion signal, active switch signal (5V-24V) Start/stop signal, passive switch signal, such as foot pedal switch |
| Communication interface | RS232/RS485, Modbus protocol(RTU mode) |
| Power supply | AC90-264V/65W |
| Condition temperature | 0-40℃ |
| Relative humidity | <80% |
| IP rate | IP31 |
| Dimension(mm) | 282*215*165 |
| Weight | 4.44kg |
Applicable Syringes
|
Plastic Syringe
|
Inside Diameter(mm) | Flow Rate(μL/min-mL/min) | |
| ISPLab01/ISPLab02 | ISPLab04-ISPLab12 | ||
| 1.0mL | 4.70 | 0.0173-2.2889 | 0.0173-2.2889 |
| 2.0mL | 8.95 | 0.0628-8.3002 | 0.0628-8.3002 |
| 5.0mL | 12.36 | 0.1199-15.8299 | 0.1199-15.8299 |
| 10mL | 14.90 | 0.1742-23.0046 | 0.1742-23.0046 |
| 20mL | 19.20 | 0.2893-38.1984 | —— |
| 30mL | 22.00 | 0.3799-50.1520 | —— |
| 50mL | 29.20 | 0.6693-88.3505 | —— |
| 60mL | 29.20 | 0.6693-88.3505 | —— |
| 100mL | 32.00 | 0.8042-106.1544 | —— |
| 150mL | 40.00 | 1.2566-165.8712 | —— |
| Micro Syringe | Inside Diameter(mm) | Flow Rate(nL/min-μL/min) | |
| ISPLab01/ISPLab02 | ISPLab04-ISPLab12 | ||
| 0.5μL | 0.10 | 0.008-1.0296 | —— |
| 1μL | 0.15 | 0.018-2.3232 | —— |
| 2μL | 0.20 | 0.031-4.1448 | —— |
| 5μL | 0.35 | 0.096-12.6984 | —— |
| 10μL | 0.50 | 0.2-25.8 | 0.2-25.8 |
| 25μL | 0.80 | 0.5-66.4 | 0.5-66.4 |
| 50μL | 1.10 | 1-125.4 | 1-125.4 |
| 100μL | 1.60 | 2-265.4 | 2-265.4 |

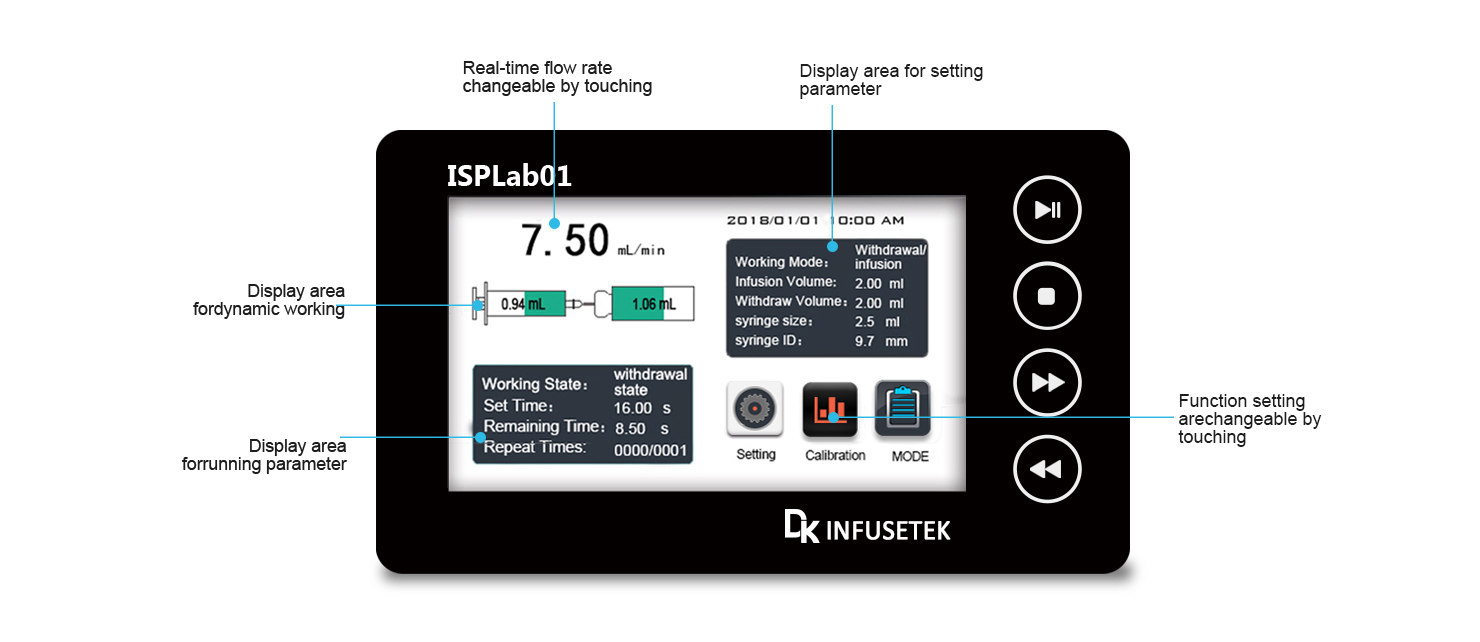

OSD

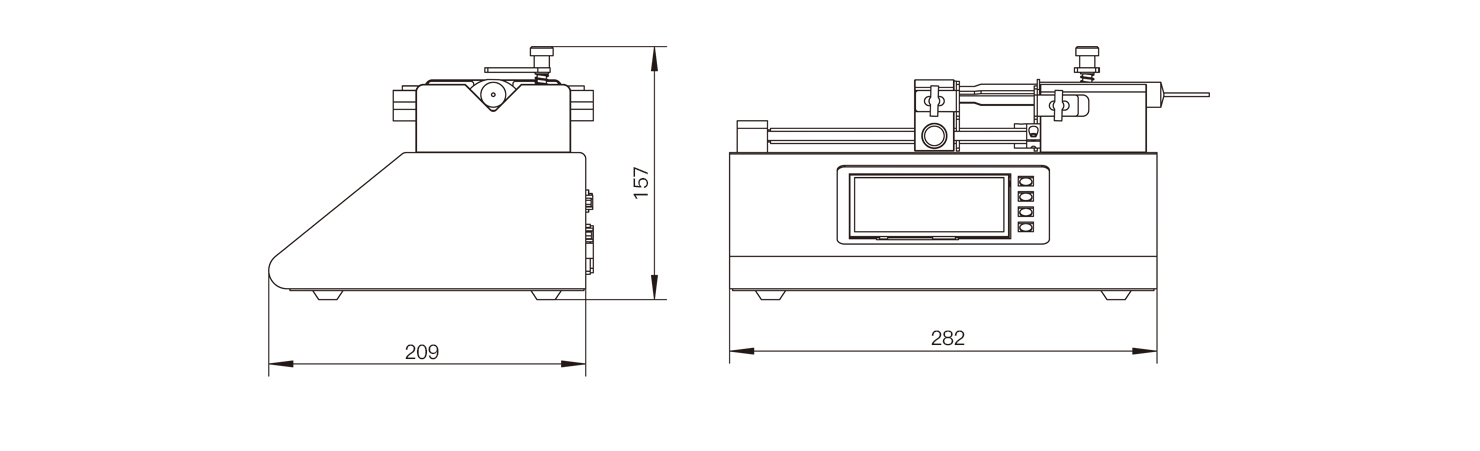

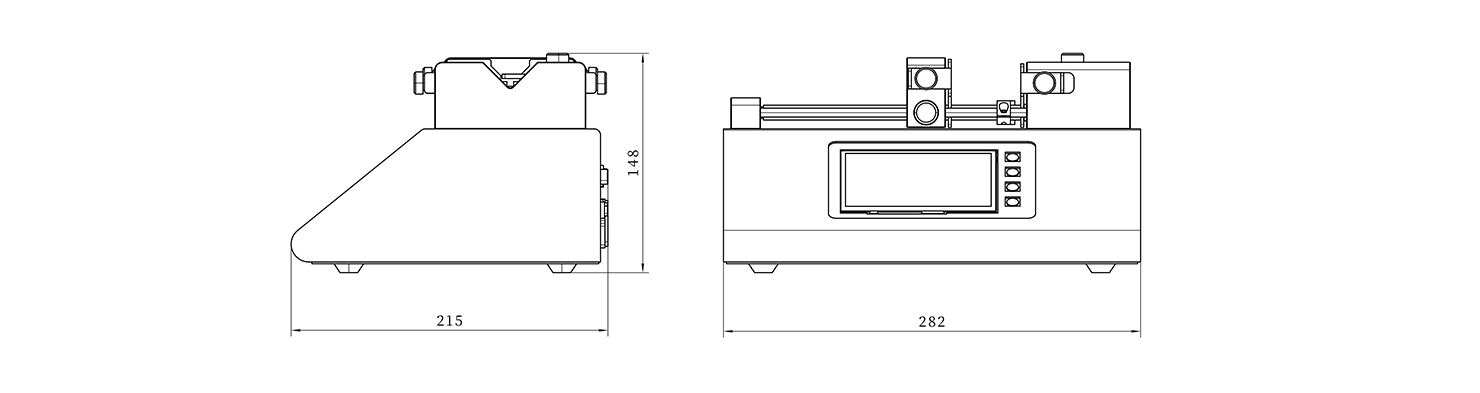

Dimension（Unit：mm）
