Product Introduction
The syringe pump with infusion/withdrawal mode. Online flow rate modification function: the pump is running, without stopping, adjust the flow rate at any time to meet complex application. Stainless steel body, and large-screen color LCD is easy to operate. It can install and fix different types of injectors or syringes, and it is suitable for transferring micro flow rates with high precision (non-medical).
- Colorful LCD display: Friendly interface, large-screen LCD display every technical parameter in real time.
- Input injector inner diameter function: Can choose the injector from the list or input the injector inner diameter directly.
- Two measurement modes for selection: Infusion volume --- Infusion rate, Infusion volume --- Infusion time.
- 6 different working modes: Infusion, withdrawal, infusion/withdrawal, withdrawal/infusion, continuous and additional mode (infusion/withdrawal, then exclude bubble). The parameters of each working mode are saved separately.
- Protection function: The pump will stall and give an alarm when the drive structure of the pump is blocked.
- Online flow rate modification function: the pump is running, without stopping, adjust the flow rate at any time to meet complex application.
Applicable Syringes
|
Plastic Syringe
|
Inside Diameter(mm)
|
Flow Rate(μL/min-mL/min)
|
|
| SPLab01/SPLab02 | SPLab04-SPLab12 | ||
|
1mL
|
4.70
|
0.0867-2.2889 | 0.0867-2.2889 |
|
2mL
|
8.95
|
0.3144-8.3002 | 0.3144-8.3002 |
|
5mL
|
12.36
|
0.5996-15.8299 | 0.5996-15.8299 |
|
10mL
|
14.90
|
0.8713-23.0046 | 0.8713-23.0046 |
|
20mL
|
19.20
|
1.4469-38.1984 | —— |
|
30mL
|
22.00
|
1.8997-50.1520 | —— |
|
50mL
|
29.20
|
3.3466-88.3505 | —— |
|
60mL
|
29.20
|
3.3466-88.3505 | —— |
|
100mL
|
32.00
|
4.0192-106.1544 | —— |
|
150mL
|
40.00
|
6.28-165.8712 | —— |
|
Glass Syringe
|
Inside Diameter(mm) | Flow Rate(μL/min-mL/min) | |
| SPLab01/SPLab02 | SPLab04-SPLab12 | ||
| 250μL | 2.30 | 0.021-0.548 | 0.021-0.548 |
| 500μL | 3.25 | 0.041-1.095 | 0.041-1.095 |
| 1mL | 4.60 | 0.083-2.193 | 0.083-2.193 |
| 2.5mL | 7.28 | 0.208-5.494 | 0.208-5.494 |
| 5mL | 10.30 | 0.416-10.99 | 0.416-10.99 |
| 10mL | 14.57 | 0.833-22.00 | 0.833-22.00 |
| 25mL | 23.00 | 2.077-54.84 | —— |
| 50mL | 32.57 | 4.165-109.9 | —— |
| 100mL | 32.57 | 4.165-109.9 | —— |
|
Micro Syringe
|
Inside Diameter(mm) | Flow Rate(nL/min-μL/min) | |
| SPLab01/SPLab02 | SPLab04-SPLab12 | ||
| 10μL | 0.50 | 1-25.91 | 1-25.91 |
| 25μL | 0.80 | 2.5-66.34 | 2.5-66.34 |
| 50μL | 1.10 | 4.75-125.4 | 4.75-125.4 |
| 100μL | 1.60 | 10-256.3 | 10-256.3 |
Technical Parameters
|
Working mode
|
Infusion，withdrawal，infusion/withdrawal，withdrawal/infusion，continuous
|
||||||
|
Channel number
|
1
|
2
|
4
|
6
|
8
|
10
|
12
|
|
Syringe size
|
10μL-150mL
|
10μL-10mL
|
|||||
|
Syringe selection
|
Syringe size and customized diameter
|
||||||
|
Linear speed
|
5μm/min-132mm/min(Flow rate=Linear speed*syringe inner cut area)
|
||||||
| Min.linear rate |
5μm/min
|
||||||
|
Linear force
|
≥25kgf
|
||||||
|
Max.stroke
|
140mm
|
||||||
|
Stoke resolution
|
0.078μm/μstep
|
||||||
|
Accuracy
|
Error≤±0.5%(Stroke≥30% of maximum stroke)
|
||||||
|
Display mode
|
320 * 240TFT-LCD
|
||||||
|
Control method
|
Rotary encoded switch and imported membrane keypad
|
||||||
|
Power-off memory
|
Display the previous data parameter after power supply again
|
||||||
|
External control
|
Active switch signal,5V
|
||||||
|
Communication interface
|
RS485,Modbus protocol,(RTU mode)
|
||||||
|
Power supply
|
AC 220V±10%(standard)、AC 110V±10%(option)
|
||||||
|
Condition temperature
|
0-40℃
|
||||||
|
Relative humidity
|
<80%
|
||||||
|
IP rate
|
IP31
|
||||||
|
Dimension(mm)
|
282*214*148
|
282*248*158
|
282*220*165
|
282*243*165
|
282*265*163
|
295*292*175
|
325*314*175
|
|
Weight
|
5.26kg
|
5.40kg
|
5.40kg
|
5.66kg
|
5.78kg
|
5.96kg
|
6.16kg
|

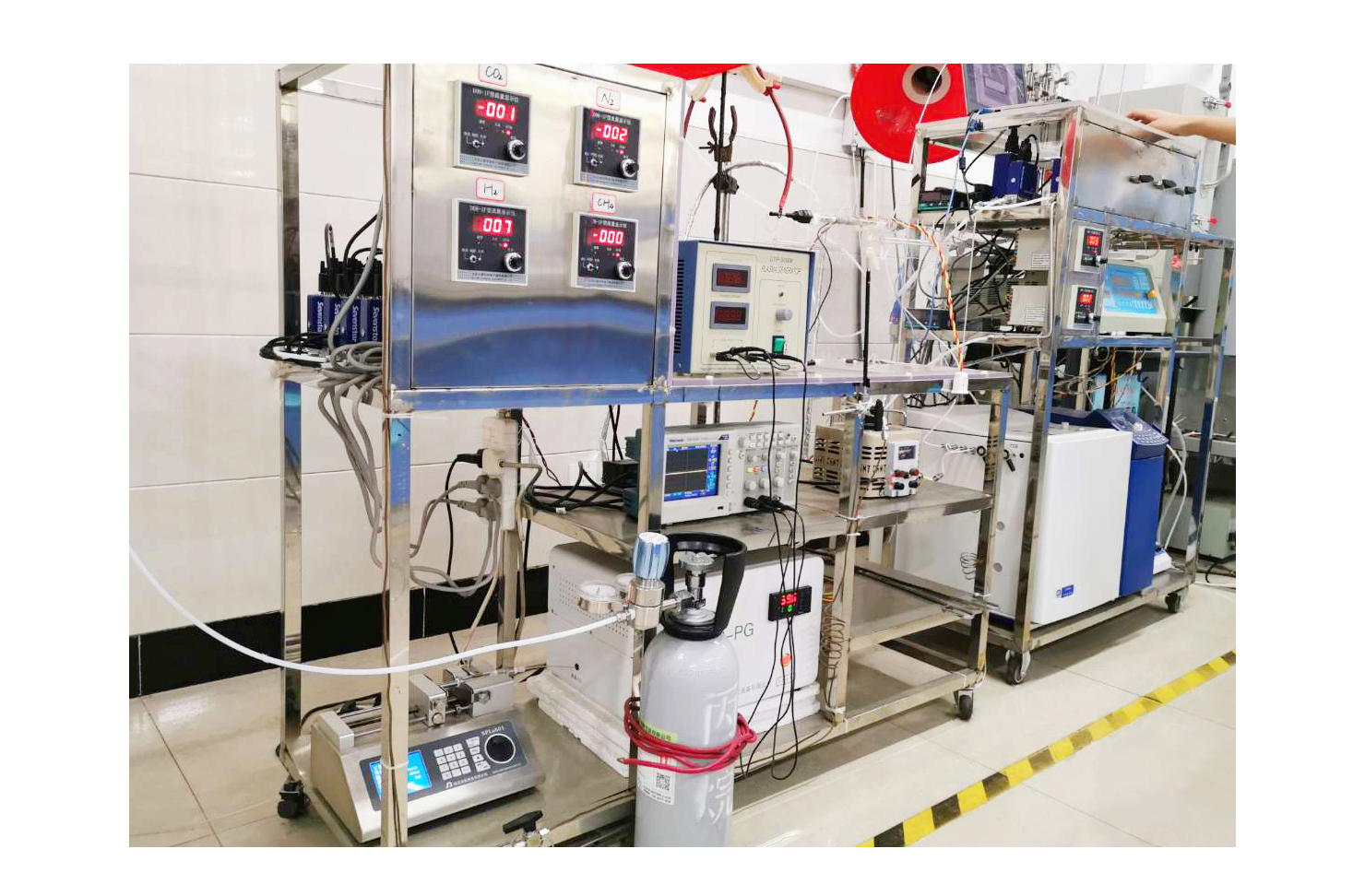

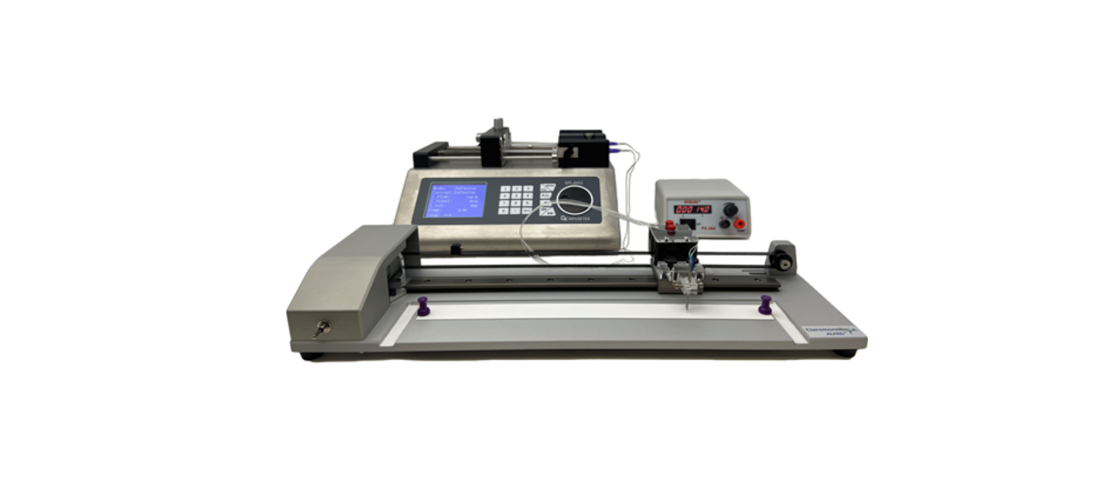

Applications

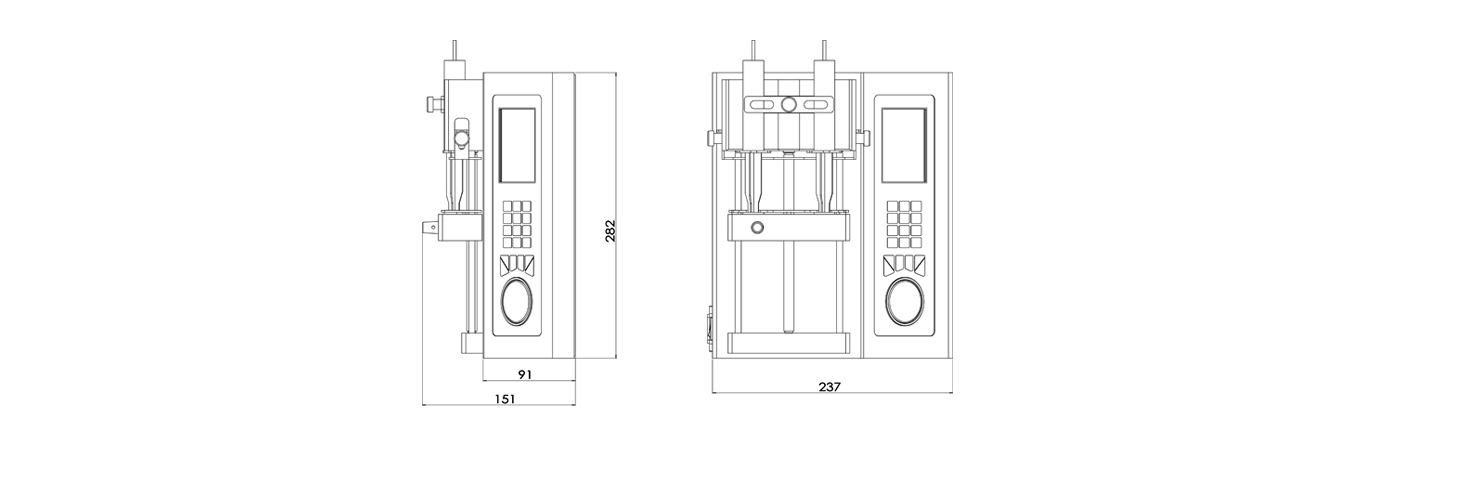

Dimension（Unit：mm）
