Product Introduction
SP30-1A syringe pump is a programmable liquid handling pump module, rated stroke：30mm. The pump can be controlled by external computer or microcontroller, to realize high precision liquid handling.
- Application flexibility: Programmable, controlled by external computer or microcontroller, suitable for a wide range of sizes syringe and valves.
- Reliable performance: Photoelectric encoder detects out of step; controllable start speed, maximum speed and stop speed; Programmable acceleration and deceleration slopes; Can realize planned maintenance and replacement of syringes and valves.
- Simple way to integrate: Support RS232/RS485/CAN communication; Up to 15 sets of SP30-1A syringe pumps can be connected together; Two digital inputs and three outputs for TTL level signals; Used for synchronization with other external devices.
Technical Parameter
| Accuracy | Error ≤±0.1%(stroke≥30% maximum stroke) |
| Plunger drive | Stepper motor drives ball screw, quadrature encoder detects out-of-step and returns to zero |
| Max. stroke(Steps) | 30mm(3000 steps or 24000 steps) |
| Run time per stroke | 1.25s-100min |
| Speed resolution | 0.05mm/s |
| Stroke resolution | 0.01mm or 0.00125mm |
| Valve switch time | ≤250ms between adjacent ports |
| Valves type | 3 port 120° valve, 4 port valve, 3 port distribution valve, 9 port distribution valve |
| Valve material | Valve body: PCTFE; Valve element: PTFE |
| Tubing fittings | 1/4-28UNF |
| Syringe fittings | 1/4-28UNF |
| Power supply | DC24V±10%/1.25A (Peak value) |
| Communication interface | RS232/RS485/CAN |
| Syringes | 50μL, 100μL, 250μL, 500μL, 1.0mL, 2.5mL, 5.0mL, 12.5mL(SP30-1A12_5) |
| Syringe material | Barrel material: Borosilicate glass; Plunger rod material: Stainless steel; Plunger seal material: PTFE |
| Baud rate | 9600 or 38400(RS232/RS485); 100K, 125K, 250K, 500K, 1M(CAN) |
| Addressing | UP to 15 individual addresses available(BCD switch) |
| Input | Two TTL level signal inputs, for restart the paused instruct |
| Output | Three TTL level signal outputs, for synchronous external devices |
| Valve body rated pressure | 0.68MPa(High pressure above 0.68MPa, please contact us) |
| Condition temperature | 15°C~40°C(Low temperature operation requires a low temperature syringe) |
| Storage temperature | -20°C~65°C |
| Dimension(L*W*H) | 139.2×44.5×127(mm) |

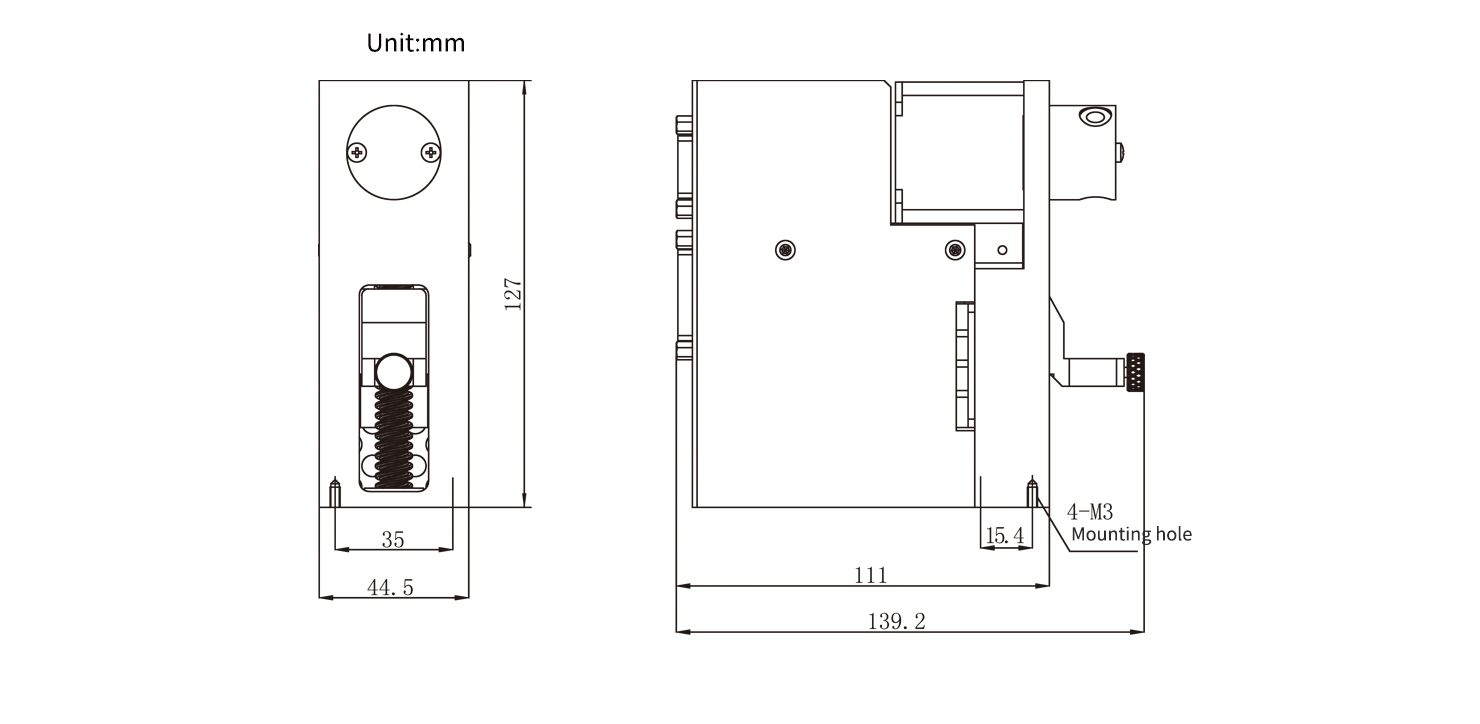

Dimension（Unit：mm）
