SP60-4B
- Product Introduction
- Technical Parameter
- Dimension
Product Introduction
It is a programmable, open-architecture, precision liquid handling unit, which is controlled by external computer or microprocessor to realize automatic pipetting, dilution and dispensing functions.
- Simultaneous processing multiple liquids
- Photoelectric encoder detects out of step
- Controllable start speed, maximum speed and stop speed
- Programmable acceleration and deceleration slopes
- Can realize planned maintenance and replacement of syringes
Technical Parameter
| Accuracy | Error ≤±0.1%(stroke≥30% maximum stroke) |
| Max. stroke(Steps) | 60mm(6000 steps or 48000 steps) |
| Linear speed range | 0.01mm/s-60mm/s |
| Run time per stroke | 1.25s-100min |
| Speed resolution | 0.01mm/s |
| Stroke resolution | 0.01mm or 0.00125mm |
| Valve switch time | ≤250 ms between adjacent ports |
| Valves type | Electromagnetic valve |
| Valve material | Valve body: PEEK; Diaphragm: FKM; Sealing ring: FKM |
| Tubing fittings | 1/4-28UNF |
| Syringe fittings | 1/4-28UNF |
| Power supply | DC24V±10%/2.5A (Peak value) |
| Communication interface | RS232/RS485/CAN |
| Syringes | 50μL,100μL,250μL,500μL,1.0mL,2.5mL,5.0mL |
| Syringe material | Barrel material: Borosilicate glass; Plunger rod material: Stainless steel; Plunger seal material: PTFE |
| Baud rate | 9600 or 38400(RS232/RS485); 100K,125K,250K,500K,1M(CAN) |
| Addressing | UP to 15 individual addresses available(BCD switch) |
| Input | Two TTL level signal inputs, for restart the paused instruct |
| Output | Three TTL level signal outputs, for synchronous external devices |
| Valve body rated pressure | 0.2MPa |
| Condition temperature | 15℃~40℃(Low temperature operation requires a low temperature syringe) |
| Storage temperature | -20℃~65℃ |
| Relative humidity | <80%(RH) |
| Channel number | 4 |
| Dimension(L*W*H) | 125.5*112*252 |

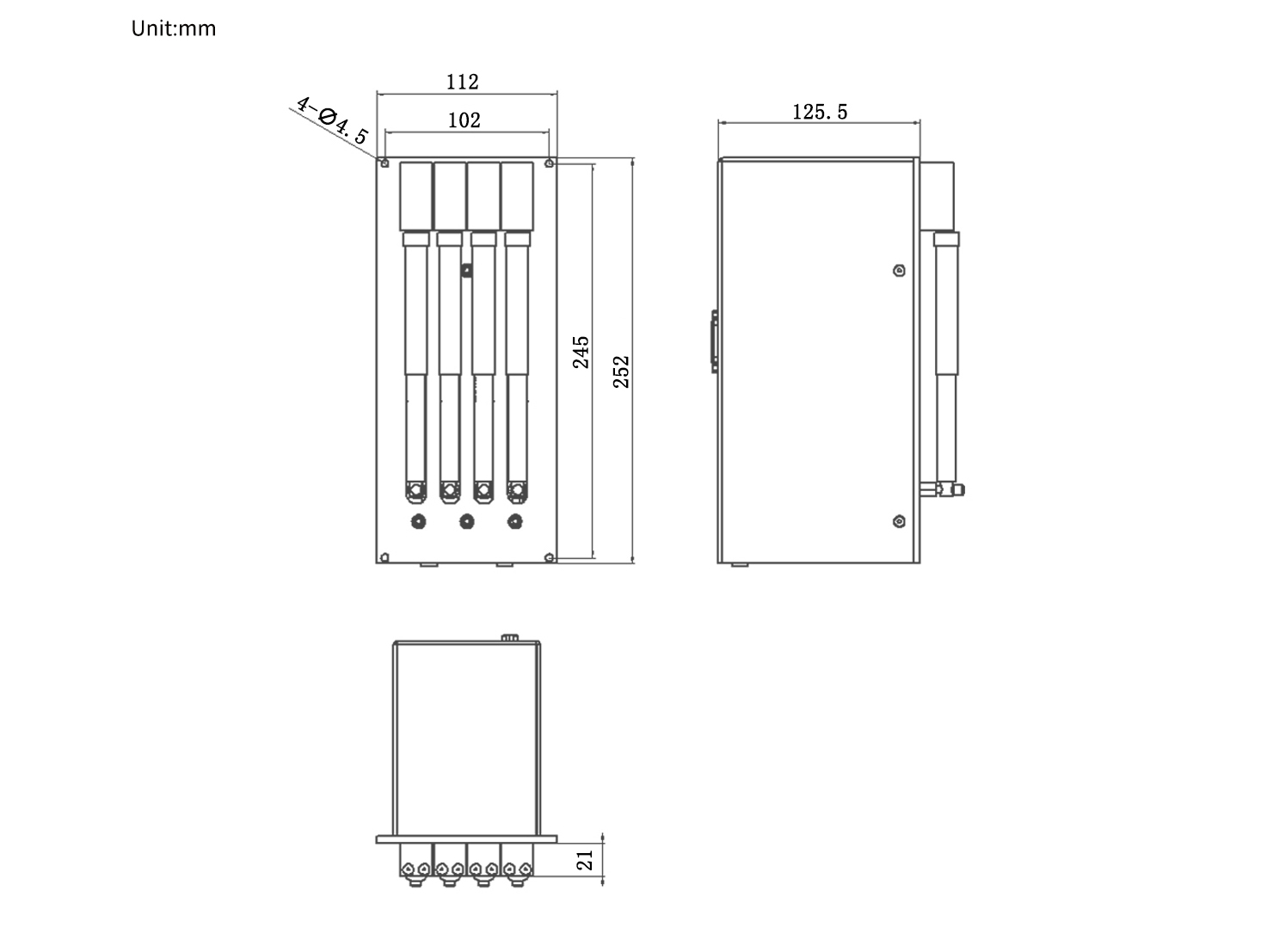

Dimension（Unit：mm）
