Product Introduction

The rotatory switching valve is a programmable liquid path unit, support 3 port valve, 4 port valve and 3 port distribution valve. It is controlled by external controller to realize connection between valve body and the ports, controller can check the location of the port at any time.

Technical Parameter

Valve type 3 port non-distribution valve
Path diameter 1.4mm
Material Valve body: PCTFE; Valve element: PTFE
Maximum pressure 0.68MPa(High pressure above 0.68MPa, please contact us)
Condition temperature 15℃~40℃
Connection 1/4-28UNF
Port switching time ≤250ms (Between two adjacent ports)
Communication RS485 (standard), RS232/CAN (for option)
Address setting BCD dip Switch set up the address, can set maximum 15 addresses
Baud rate (bps) 9600 or 38400 (RS485/RS232); 100K, 125K, 250K, 500K, 1M (CAN)
Power supply DC24V/1.25A
Dimension(mm) 141.2 X 49 X 63.7
Weight 625g

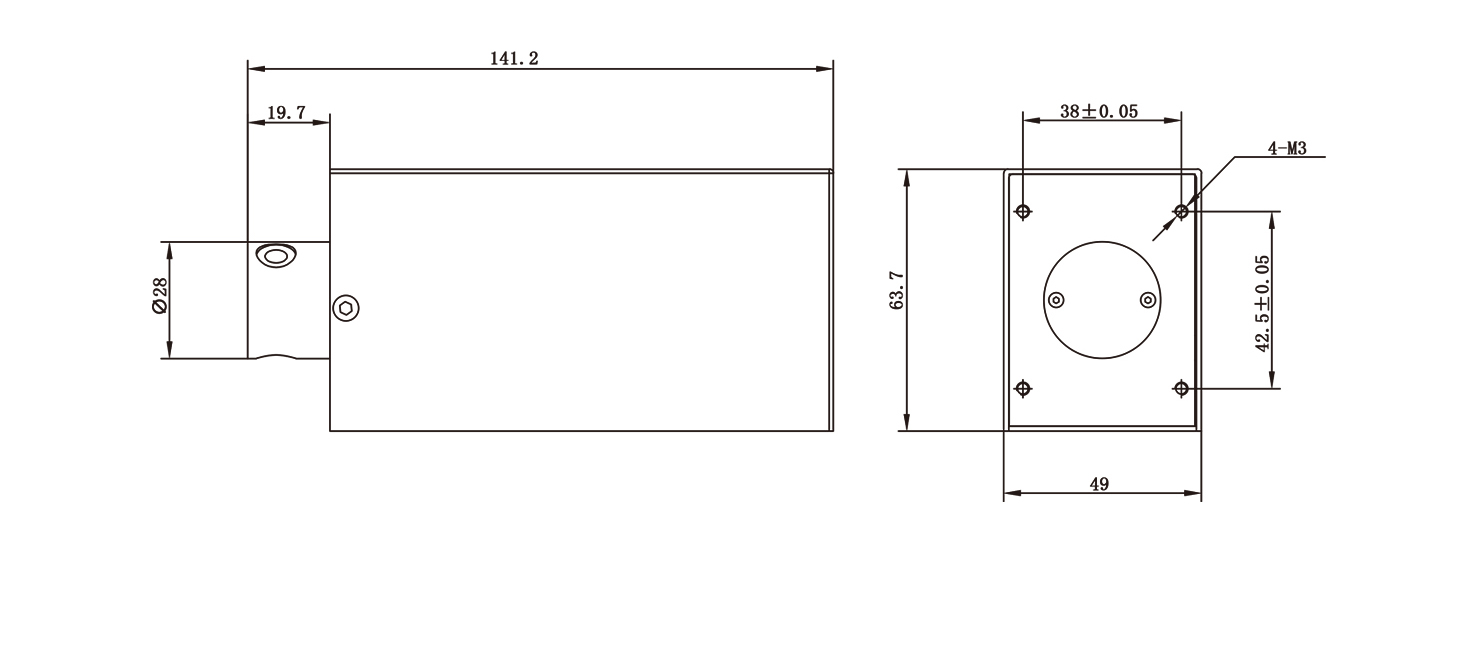

Dimension（Unit：mm）
