SP60-nA is a programmable liquid handling device. The rated stroke is 60mm, and multichannel can be working at same time which can be controlled by an external computer or microprocessor to realize automated pipetting, dilution and dispensing functions.
Flexible: This syringe pump is programmable and it can be controlled by external controller; Suitable syringes range is 50μL~10mL.
Reliable: Uses photoelectric sensor for lost-step detection; Configures speed and acceleration; Reads the number of syringe and valve movements, enabling planned maintenance.
Simple integration method: Supports RS232/RS485 communication; Connect up to 15 SP60-nA syringe pumps simultaneously; TTL level digital signal: two inputs and three outputs; Can be synchronized with other external devices.
BCD DIP switch(Up to 15 independent addresses can be set)
Signal input
2 channels TTL level input
Signal output
3 channels TTL level output
Working temperature
15℃~40℃
Number of channel
2

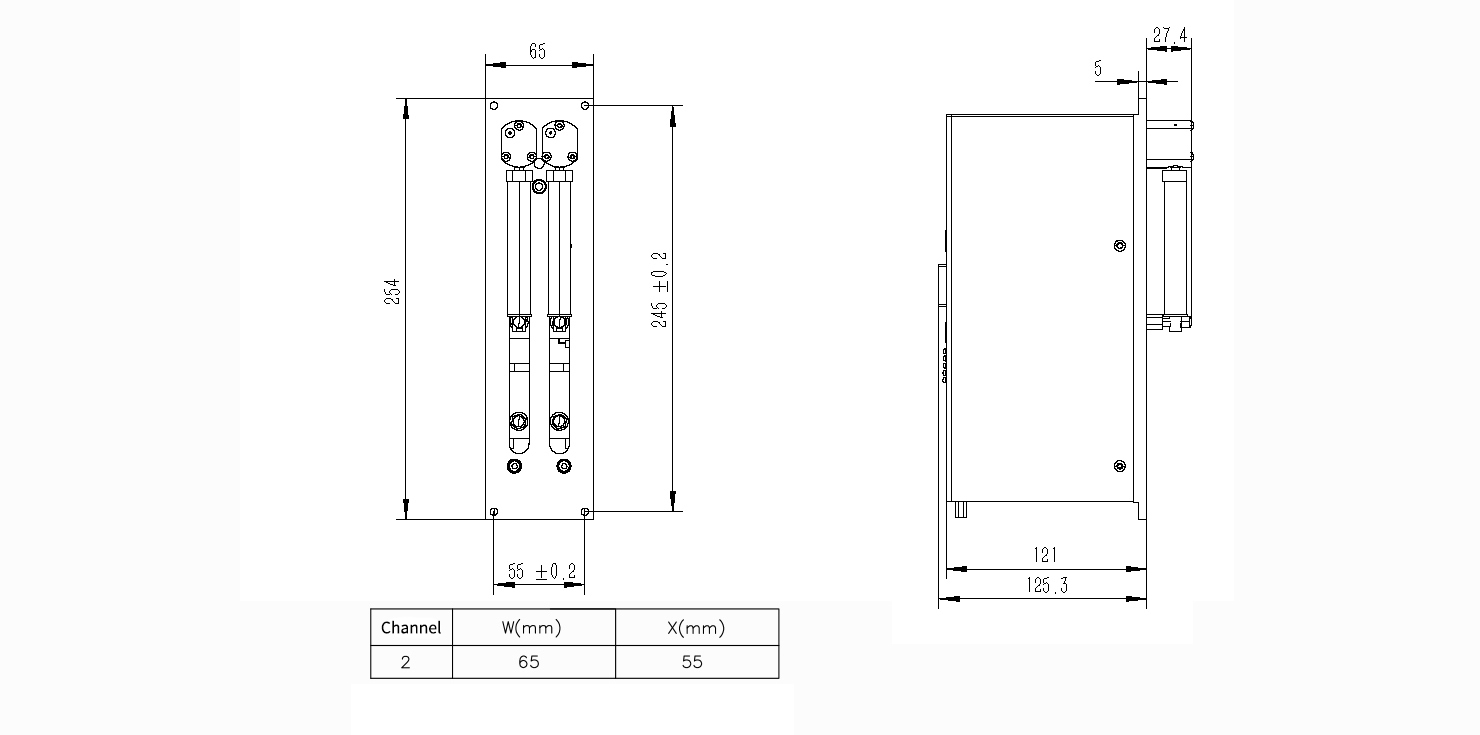

Product dimension drawing(mm)
65*153*254
Dimension（Unit：mm）
